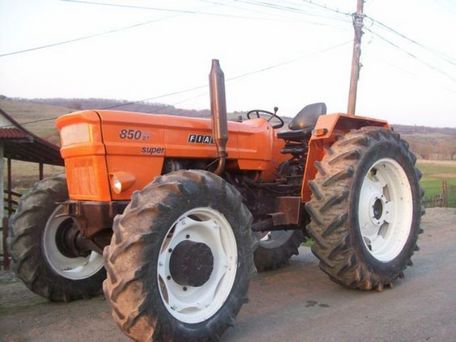

Fiat 850 Super

Production: 1972 - 1974

Production
Manufacturer:	Fiat
Type:	Row-Crop tractor

Variants
850 Super:	two-wheel drive
850DT Super:	four-wheel drive

Fiat 850 Super Power
Engine:	93.7 hp 69.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Open operator station. Four-post ROPS and cab available.
Transmissions:	12-speed
16-speed creeper

Tractor hitch
Rear Type:	II
Rear lift:	5733 lbs 2600 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Battery volts:	12

Engine Detail
Fiat OM CO3-80
diesel
4-cylinder
liquid-cooled
Displacement:	301.5 ci 4.9 L
Bore/Stroke:	4.33x5.12 inches 110 x 130 mm
Power:	93.7 hp 69.9 kW
Compression:	17:1
Rated RPM:	2100
Firing order:	1-3-4-2
Starter:	electric
Starter volts:	12

Dimensions
2WD Wheelbase:	97.6 inches 247 cm
4WD Wheelbase:	99.2 inches 251 cm
2WD Length:	164.2 inches 417 cm
4WD Length:	166.9 inches 423 cm
2WD Width:	76 inches 193 cm
4WD Width:	82.3 inches 209 cm
Height (ROPS):	105.1 inches 266 cm
2WD Weight:	7496 lbs 3400 kg
4WD Weight:	8267 lbs 3749 kg
2WD Ground clearance:	22.4 inches 56 cm
4WD Ground clearance:	16.9 inches 42 cm
