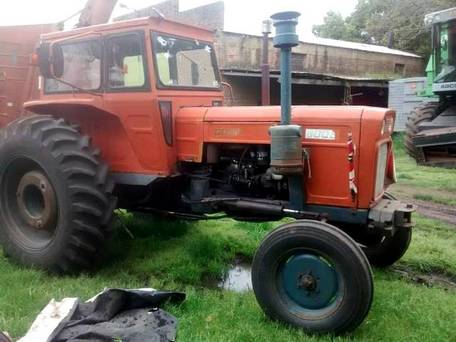

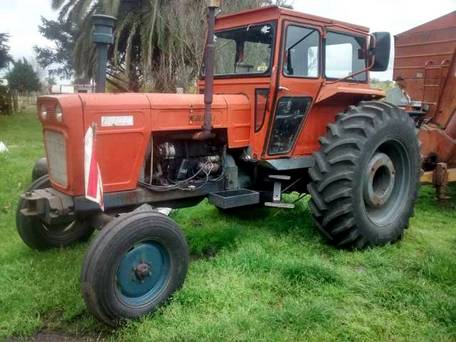

Fiat 800E

Production: 1974 - 1980

Production
Manufacturer:	Fiat
Type:	Row-Crop tractor
Factory:	Sauce Viejo, Argentina

Fiat 800E Power
Engine:	90 hp 67.1 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	mechanical disc
Cab:	Open operator station.
Transmission:	9-speed gear

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear RPM:	540/1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Fiat
diesel
4-cylinder
liquid-cooled
Displacement:	329.6 ci 5.4 L
Bore/Stroke:	4.53x5.12 inches 115 x 130 mm
Power:	90 hp 67.1 kW
Rated RPM:	2200
Starter:	electric
Starter volts:	12

Transmission
Type:	gear
Gears:	9 forward and 2 reverse

Dimensions
Wheelbase:	95.3 inches 242 cm
Length:	156.7 inches 398 cm
Height (steering wheel):	70.3 inches 178 cm
Height (exhaust):	90.2 inches 229 cm
Weight:	6923 lbs 3140 kg
Clearance (front axle):	21.3 inches 54 cm
Front tread:	54.3 to 79.9 inches 137 to 202 cm
Rear tread:	55.7 to 80.1 inches 141 to 203 cm
