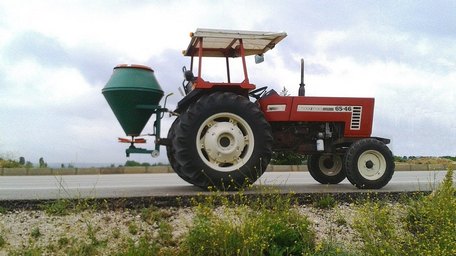

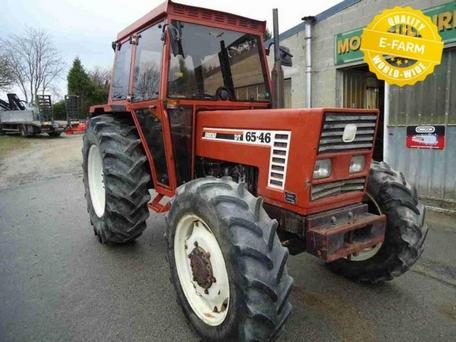

Fiat 65-46
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Fiat |
| Type: | Utility tractor |
Variants | |
| 65-46DT: | 4WD |
Fiat 65-46 Power | |
| Engine: | 65 hp 48.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | mechanical band |
| Cab: | Four-post ROPS. Cab available with heater. |
| Transmissions: | 8-speed partially synchronized |
| 12-speed creeper | |
Hydraulics | |
| Pressure: | 2756 psi 190.0 bar |
| Pump flow: | 7 gpm 26.5 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Rear lift (at ends): | 4277 lbs 1940 kg |
| Rear lift (at 24"/610mm): | 3814 lbs 1730 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
65-46 Serial Numbers | |
| Location: | Serial number on the left side of the 55-46, behind the rear axle. |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Fiat 8045.06 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 220.5 ci 3.6 L |
| Bore/Stroke: | 3.94x4.53 inches 100 x 115 mm |
| Power: | 65 hp 48.5 kW |
| Compression: | 17:1 |
| Rated RPM: | 2500 |
| Firing order: | 1-3-4-2 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| 2WD Wheelbase: | 86.7 inches 220 cm |
| 4WD Wheelbase: | 85.2 inches 216 cm |
| 2WD Length: | 136.6 inches 346 cm |
| 4WD Length: | 144.1 inches 366 cm |
| 2WD Ground clearance: | 21.1 inches 53 cm |
| 4WD Ground clearance: | 13.6 inches 34 cm |
