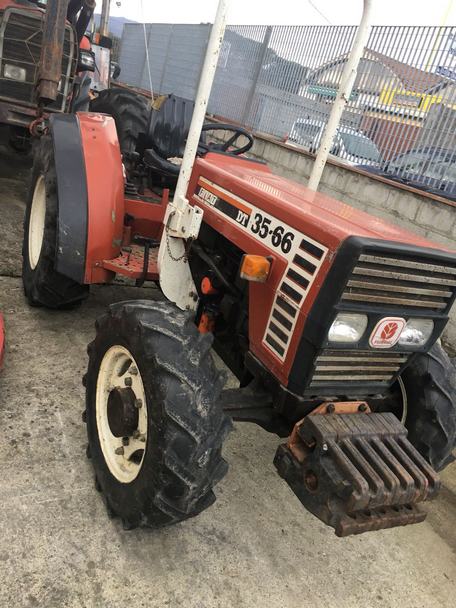

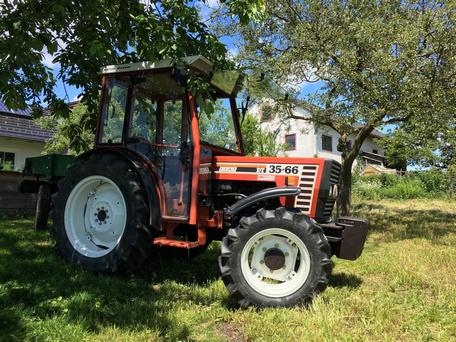

Fiat 35-66

Production: 1990 - 1998
Type: Utility Tractors

Contents:

Production

Manufacturer:Fiat
Type:Utility tractor

Fiat 35-66 Power

Engine:34.5 hp 25.7 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Steering:power
Transmission:16-speed

Hydraulics

Pump flow:6.08 gpm 23.0 lpm

Tractor hitch

Rear lift:3,032 lbs 1375 kg

Power Take-off (PTO)

Rear RPM:540

Engine Detail

Lombardini LDW 1503
diesel
3-cylinder
liquid-cooled
Displacement:94.6 ci 1.6 L
Bore/Stroke:3.46x3.35 inches 88 x 85 mm
Power:34.5 hp 25.7 kW
Rated RPM:2800
Torque:75.24 lb-ft 102.0 Nm
Torque RPM:2500

Transmission

Gears:16 forward and reverse

Dimensions

Wheelbase:66.9 inches 169 cm
Length:117 inches 297 cm
Height:78 inches 198 cm
Weight:3,087 lbs 1400 kg

Fiat 35-66 Video
