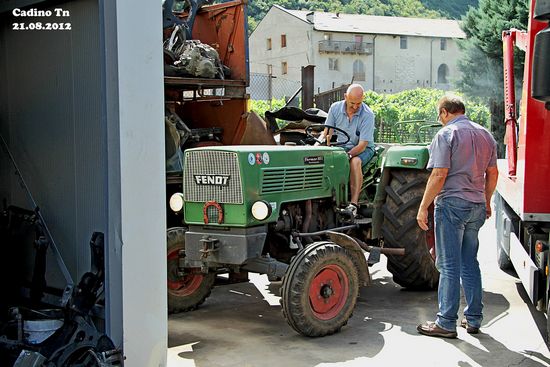

Fendt Farmer 103S

Production: 1972 - 1984

Production
Manufacturer:	Fendt
Type:	Row-Crop tractor

Fendt Farmer 103S Power
Engine:	48 hp 35.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	manual
Steering:	power*Optional
Cab:	Open operator station.
Transmission:	13-speed synchronized

Tractor hitch
Rear lift:	4410 lbs 2000 kg

Power Take-off (PTO)
Rear RPM:	540/1000

Engine Detail
MWM D325-3
diesel
3-cylinder
liquid-cooled
Displacement:	155.6 ci 2.6 L
Bore/Stroke:	3.74x4.72 inches 95 x 120 mm
Power:	48 hp 35.8 kW
Rated RPM:	2400

Transmission
Type:	synchronized
Gears:	13 forward and 4 reverse

Dimensions
Wheelbase:	83.1 inches 211 cm
Length:	142.91 inches 362 cm
Height:	90.94 inches 230 cm
2WD Weight:	5236 lbs 2375 kg
4WD Weight:	5865 lbs 2660 kg
