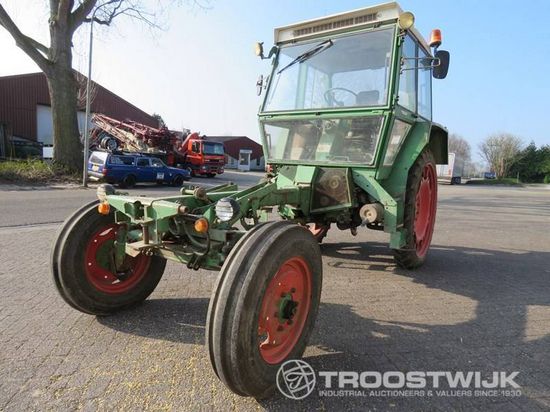

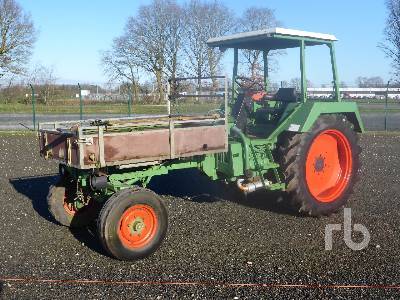

Fendt F255GT

Production: 1976 - 1982

Production
Manufacturer:	Fendt
Type:	Tool Carrier tractor

Fendt F255GT Power
Engine:	70 hp 52.2 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	mechanical
Cab:	Cab standard.
Transmissions:	14-speed synchromesh
20-speed creeper

Hydraulics
Type:	open center
Pressure:	2538 psi 175.0 bar
Pump flow:	10.6 gpm 40.1 lpm

Tractor hitch
Rear lift:	4520 lbs 2050 kg

Power Take-off (PTO)
Rear RPM:	540/1000
Front RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	33
Charging volts:	14
Battery volts:	12
Battery AH:	110

Engine Detail
KHD
diesel
3-cylinder
air-cooled
Displacement:	172.4 ci 2.8 L
Bore/Stroke:	3.937x4.72 inches 100 x 120 mm
Power:	55 hp 41.0 kW
Fuel system:	direct injection
Rated RPM:	2300
Starter volts:	12

Dimensions
Wheelbase:	118 inches 299 cm
Length:	182.6 inches 463 cm
Width:	72.8 inches 184 cm
Height (cab):	100.9 inches 256 cm
Weight:	7220 lbs 3274 kg
Ground clearance:	18.9 inches 48 cm
Front tread:	53.5/59.1/64.6/66.9/70.9 inches 135/150/164/169/180 cm
Rear tread:	59.1 inches 150 cm
