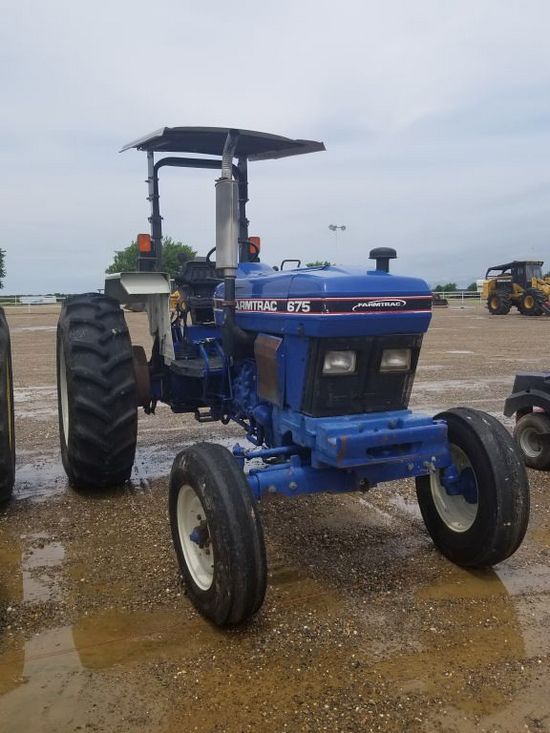

Farmtrac 675

Production: 2002 - 2008

Production
Distributor:	Farmtrac
Manufacturer:	Escorts
Type:	Utility tractor
Factory:	Faridabad, India

Variants
675DTC:	4WD

Farmtrac 675 Power
Engine:	72.4 hp 54.0 kW
PTO (tested):	67.13 hp 50.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	differential hydraulic wet disc
Cab:	Two-post ROPS. Canopy optional.
Transmission:	12-speed shuttle

Hydraulics
Type:	open center
Valves:	2
Pump flow:	9.8 gpm 37.1 lpm
Steering flow:	3 gpm 11.4 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	5063 lbs 2296 kg
Rear lift (at 24"/610mm):	3978 lbs 1804 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Ground:	negative
Charging amps:	55
Battery CCA:	800
Battery volts:	12

Engine Detail
Perkins
diesel
4-cylinder
liquid-cooled
Displacement:	268 ci 4.4 L
Bore/Stroke:	4.134x5.00 inches 105 x 127 mm
Power:	72.4 hp 54.0 kW
Air cleaner:	dual paper elements
Compression:	19.3:1
Rated RPM:	2200
Starter volts:	12

Transmission
Type:	shuttle
Gears:	12 forward and reverse

Dimensions
Wheelbase:	80.7 inches 204 cm
Length:	145 inches 368 cm
Width:	76 inches 193 cm
Height:	96 inches 243 cm
