Farmall 544
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Farmall (a part of International Harvester) |
| Type: | Row-Crop tractor |
| Factory: | Rock Island, Illinois, USA |
Variants | |
| utility tractor | |
| industrial tractor |
Farmall 544 Power | |
| Drawbar (claimed): | 45.5 hp 33.9 kW |
| PTO (claimed): | 52 hp 38.8 kW |
| Plows: | 4 (16-inch) |
| Drawbar (tested): | 44.74 hp 33.4 kW |
| PTO (tested): | 55.52 hp 41.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Brakes: | independent mechanical disc |
| Cab: | Open operator station. Cab optional with heater. |
| Transmissions: | 5-speed gear |
| 10-speed two-speed power shift | |
| 5-speed shuttle | |
| hydrostatic | |
Hydraulics | |
| Type: | open center |
| Valves: | 0 to 2 |
Tractor hitch | |
| Rear Type: | II/I |
| Type: | IH Fast Hitch |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
544 Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor, on the clutch housing. |
| 1968: | 10250 |
| 1969: | 12541 |
| 1970: | 13585 |
| 1971: | 14507 |
| 1972: | 15262 |
| 1973: | 15738 |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 55 |
| Gasoline Batteries: | 1 |
| Diesel Batteries: | 2 |
| Gasoline Battery volts: | 12 |
| Diesel Battery volts: | 6 |
| Gasoline Battery AH: | 50 |
| Diesel Battery AH: | 135 |

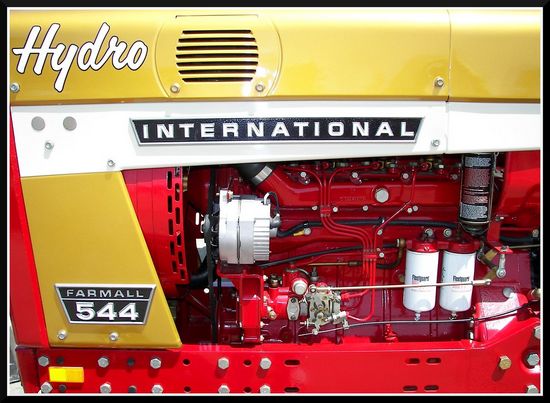

Engine Detail | |
| International Harvester D-239 | |
| diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement: | 239 ci 3.9 L |
| Bore/Stroke: | 3.875x5.060 inches 98 x 129 mm |
| Air cleaner: | dry |
| Compression: | 16:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 7 qts 6.6 L |
| Coolant capacity: | 15 qts 14.2 L |
Dimensions | |
| Wheelbase: | 90 inches 228 cm |
| Length: | 147 inches 373 cm |
| Width: | 87 inches 220 cm |
| Height (steering wheel): | 77 inches 195 cm |
| Ground clearance: | 13 inches 33 cm |
