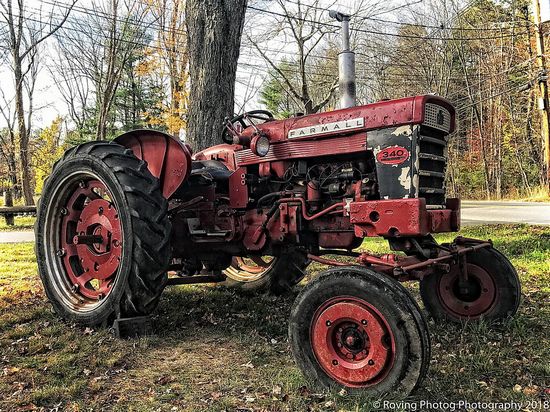

Farmall 340
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Farmall (a part of International Harvester) |
| Type: | Row-Crop tractor |
| Factory: | Rock Island, Illinois, USA |
Variants | |
| utility | |
| row-crop | |
| crawler | |
| industrial |
Farmall 340 Power | |
| Engine: | 47 hp 35.0 kW |
| Drawbar (tested): | 36.14 hp 26.9 kW |
| PTO (tested): | 38.93 hp 29.0 kW |
| Belt (tested): | 34.74 hp 25.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | differential mechanical dry disc |
| Cab: | Open operator station. |
| Transmissions: | 5-speed sliding gear |
| 10-speed partial power shift | |
340 Serial Numbers | |
| Location: | Clutch housing, right side |
| 1958: | 501 |
| 1959: | 2723 |
| 1960: | 5411 |
| 1961: | 6642 |
| 1962: | 7276 |
| 1963: | 7677 |
| Final: | ? |
Engine Detail | |
| International Harvester C-135 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 135 ci 2.2 L |
| Bore/Stroke: | 3.25x4.0625 inches 83 x 103 mm |
| Power: | 47 hp 35.0 kW |
| Air cleaner: | oil bath |
| Compression: | 7.6:1 |
| Rated RPM: | 2000 |
| Torque: | 128 lb-ft 173.6 Nm |
| Torque RPM: | 1200 |
| Starter volts: | 6 |
| Oil capacity: | 5 qts 4.7 L |
| Coolant capacity: | 15 qts 14.2 L |
Dimensions | |
| Length: | 117 inches 297 cm |
| Width: | 64 inches 162 cm |
| Height: | 59 inches 149 cm |
