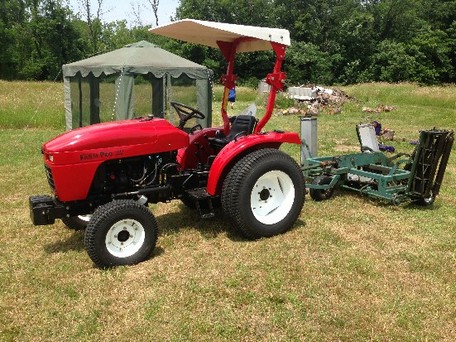

Farm Pro 2010

Production: 2005 - 2012

Production
Distributor:	Farm Pro
Manufacturer:	Jinma
Factory:	China

Farm Pro 2010 Power
Engine:	20 hp 14.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Cab:	ROPS canopy
Transmission:	12-speed

Capacity
Fuel:	4.8 gal 18.2 L
Hydraulic system:	2.375 gal 9.0 L

Hydraulics
Capacity:	2.375 gal 9.0 L
Pressure:	2000 psi 137.9 bar
Total flow:	4.80 gpm 18.2 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	810 lbs 367 kg

Power Take-off (PTO)
Rear PTO:	live (2-stage clutch)
Rear RPM:	540/1000

Engine Detail
diesel
3-cylinder
liquid-cooled
Displacement:	82.4 ci 1.4 L
Bore/Stroke:	3.14x3.54 inches 80 x 90 mm
Power:	20 hp 14.9 kW
Rated RPM:	2300
Oil capacity:	3.7 qts 3.5 L
Coolant capacity:	10.4 qts 9.8 L

Transmission
Gears:	12 forward and 4 reverse
Oil capacity:	14.8 qts 14.0 L

Dimensions
Wheelbase:	59.4 inches 150 cm
Length:	106.5 inches 270 cm
Width:	48.6 inches 123 cm
Height:	51.2 inches 130 cm
Shiping weight:	2,160 lbs 979 kg
Operating weight:	2,425 lbs 1099 kg
Ground clearance:	10.9 inches 27 cm
