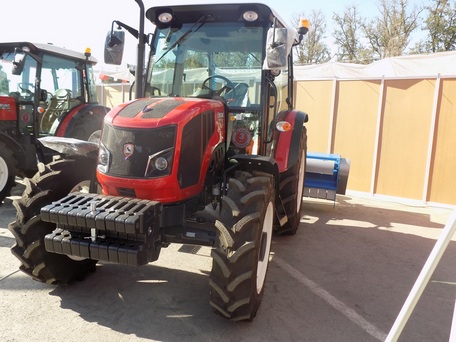

Erkunt Nimet 70E

Production: 2010

Production
Manufacturer:	Erkunt
Type:	Utility tractor
Factory:	Ankara, Turkey

Erkunt Nimet 70E Power
Engine:	67.1 hp 50.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Two-post folding ROPS. Cab optional.
Transmissions:	12-speed sync shuttle
24-speed sync shuttle

Hydraulics
Pressure:	2756 psi 190.0 bar
Valves:	4
Pump flow:	12.8 gpm 48.4 lpm

Tractor hitch
Rear lift:	5732 lbs 2600 kg
Plus Rear lift:	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Engine Detail
Perkins 1103D-33TA
turbocharged intercooled diesel
3-cylinder
liquid-cooled
Displacement:	201.4 ci 3.3 L
Bore/Stroke:	4.13x5.00 inches 105 x 127 mm
Emissions:	Stage IIIA
Power:	67.1 hp 50.0 kW
Rated RPM:	2200
Torque:	210.2 lb-ft 285.0 Nm
Torque RPM:	1400
Starter type:	electric

Dimensions
2WD Wheelbase:	85.8 inches 217 cm
4WD Wheelbase:	87 inches 220 cm
Length:	155.9 inches 395 cm
Width:	76.2 inches 193 cm
ROPS Weight:	7606 lbs 3450 kg
Cab Weight:	8047 lbs 3650 kg
