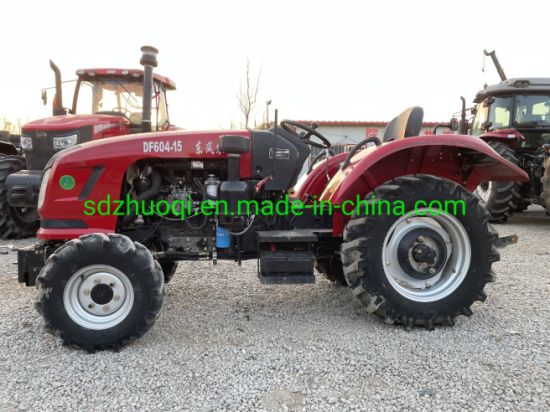

Dongfeng DF-604
Contents:
Production | |
| Manufacturer: | Dongfeng |
| Factory: | Changzhou, Jiangsu, China |
Variants | |
| 2WD |
Dongfeng DF-604 Power | |
| Engine: | 60 hp 44.7 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydraulic power |
| Brakes: | wet disc |
| Transmission: | 12-speed |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 2,474 lbs 1122 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 |
Engine Detail | |
| LR4105T | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 264.2 ci 4.3 L |
| Bore/Stroke: | 4.134x4.921 inches 105 x 125 mm |
| Power: | 60 hp 44.7 kW |
| Rated RPM: | 2300 |
Transmission | |
| Gears: | 12 forward and 4 reverse |
Dimensions | |
| Wheelbase: | 81.9 inches 208 cm |
| Length: | 153.1 inches 388 cm |
| Width: | 72.0 inches 182 cm |
| Height: | 96.1 inches 244 cm |
| Weight: | 5,248 lbs 2380 kg |
| Ground clearance: | 13.9 inches 35 cm |
