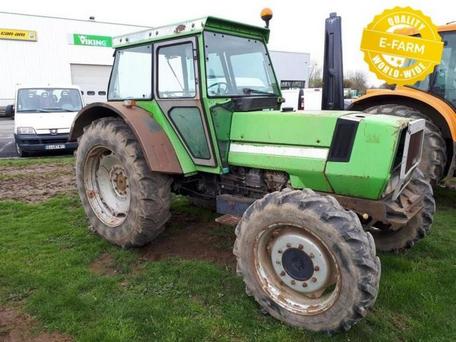

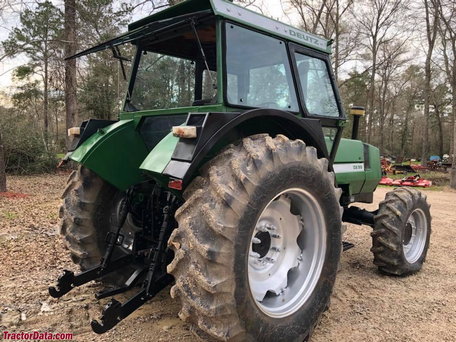

Deutz-Fahr DX 90
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Deutz-Fahr |
| Type: | Row-Crop tractor |
Variants | |
| DX 90: | 2WD |
| DX 90A: | 4WD |
Deutz-Fahr DX 90 Power | |
| PTO (claimed): | 84 hp 62.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | bull gear |
| Steering: | power |
| Brakes: | hydraulic dry disc |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 15-speed fully synchronized |
Capacity | |
| Fuel: | 31.7 gal 120.0 L |
| Hydraulic system: | 3.96 gal 15.0 L |
Hydraulics | |
| Capacity: | 3.96 gal 15.0 L |
| Pump flow: | 10.4 gpm 39.4 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 7720 lbs 3501 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | wet disc |
| Rear RPM: | 540/1000 (1.375) |
Engine Detail | |
| Deutz F5L 912 | |
| diesel | |
| 5-cylinder | |
| air-cooled | |
| Displacement: | 287.4 ci 4.7 L |
| Bore/Stroke: | 3.94x4.72 inches 100 x 120 mm |
| Rated RPM: | 2300 |
| Oil capacity: | 13.7 qts 13.0 L |
Transmission | |
| Type: | fully synchronized |
| Gears: | 15 forward and 5 reverse |
| Clutch: | dry disc |
| Oil capacity: | 50.7 qts 48.0 L |
| Five gears (1-5) in three ranges (low, medium, high). | |
Dimensions | |
| Wheelbase: | 100.8 inches 256 cm |
| Length: | 170.1 inches 432 cm |
| Height: | 102.4 inches 260 cm |
| 2WD Weight: | 9856 lbs 4470 kg |
| 4WD Weight: | 10650 lbs 4830 kg |
| Rear tread: | 59 to 79 inches 149 to 200 cm |
