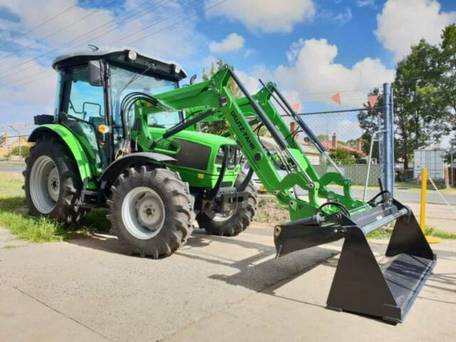

Deutz-Fahr 4065E

Production: 2018

Production
Manufacturer:	Deutz-Fahr
Type:	Utility tractor

Deutz-Fahr 4065E Power
Engine:	61.2 hp 45.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical
Steering:	power
Brakes:	wet disc
Cab:	Open operator station. Cab optional with available air-conditioning.
Transmission:	30-speed partially synchronized

Hydraulics
Type:	open center
Valves:	2
Pump flow:	11.1 gpm 42.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5512 lbs 2500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
SDF 1000.3 WT
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	183.1 ci 3.0 L
Bore/Stroke:	4.13x4.56 inches 105 x 116 mm
Emissions:	Stage IIIA
Power:	61.2 hp 45.6 kW
Torque:	177 lb-ft 240.0 Nm
Starter:	electric
Starter volts:	12

Transmission
Type:	partially synchronized
Gears:	30 forward and 15 reverse
Five synchronized gears in three ranges with shuttle and underdrive.

Dimensions
2WD Wheelbase:	80.4 inches 204 cm
4WD Wheelbase:	77.8 inches 197 cm
Width:	70.2 inches 178 cm
