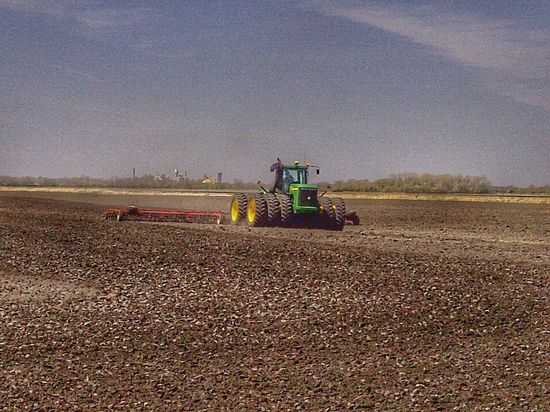

Deere 9620
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Waterloo, Iowa, USA |
Variants | |
| crawler tractor |
John Deere 9620 Power | |
| Engine: | 500 hp 372.9 kW |
| PTO (claimed): | 316 hp 235.6 kW |
| Drawbar (tested): | 397.47 hp 296.4 kW |
| PTO (tested): | 376.70 hp 280.9 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | CommandView cab standard with air-conditioning. |
| Transmission: | 18-speed full power shift |
Capacity | |
| Fuel: | 270 gal 1022.0 L |
| Hydraulic system: | 27 gal 102.2 L |
| 28 gal 106.0 L (with 3pt) | |
| 30 gal 113.6 L (hi-flow) | |
| 31 gal 117.3 L (hi-flow/3pt) | |
Hydraulics | |
| Type: | closed center pressure/flow compensated |
| Capacity: | 27 gal 102.2 L |
| 28 gal 106.0 L (with 3pt) | |
| 30 gal 113.6 L (hi-flow) | |
| 31 gal 117.3 L (hi-flow/3pt) | |
| Valves: | 4 or 5 |
| Pump flow: | 30 gpm 113.6 lpm |
| Total flow: | 48 gpm 181.7 lpm |
| 78 gpm 295.2 lpm (hi-flow) | |
Tractor hitch | |
| Rear Type: | III |
| IV/IVN | |
| Rear lift: | 13,871 lbs 6291 kg |
| 14,445 lbs 6552 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
9620 Serial Numbers | |
| Location: | On the top-left of rear hinge member |
| 2004: | 20001 |
| 2005: | 30001 |
| 2006: | 40001 |
| 2007: | 50001 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 140 |
| Batteries: | 3 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 765 ci 12.5 L |
| Bore/Stroke: | 5.00x6.50 inches 127 x 165 mm |
| Power: | 500 hp 372.9 kW |
| Air cleaner: | dual paper elements |
| Compression: | 14.7:1 |
| Rated RPM: | 2100 |
| Torque: | 1238 lb-ft 1678.7 Nm |
| Torque RPM: | 1252 |
| Starter volts: | 12 |
Transmission | |
| Transmission: | John Deere Powershift |
| Type: | full power shift |
| Gears: | 18 forward and 6 reverse |
Dimensions | |
| Wheelbase: | 137.8 inches 350 cm |
| Length: | 274 inches 695 cm |
| 289 inches 734 cm (with hitch) | |
| Width: | 115.5 inches 293 cm |
| Clearance (front axle): | 28.8 inches 73 cm |
| Clearance (drawbar): | 17 inches 43 cm |
