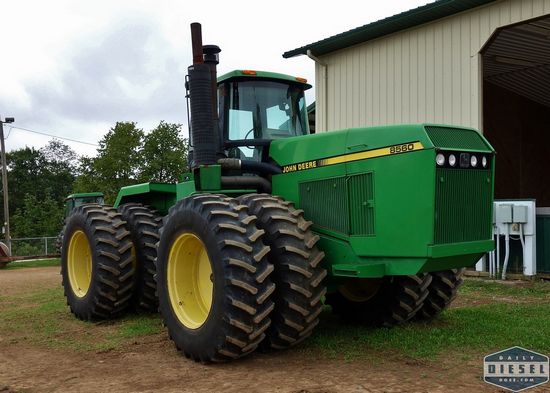

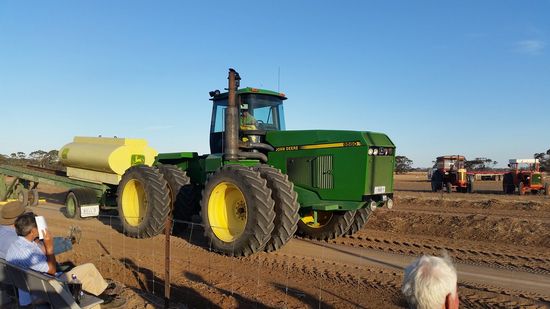

Deere 8560

Production: 1989 - 1993

Production
Manufacturer:	John Deere
Type:	Four-wheel Drive (4WD) tractor
Factory:	Waterloo, Iowa, USA

John Deere 8560 Power
Engine:	235 hp 175.2 kW
PTO (claimed):	200 hp 149.1 kW
Drawbar (tested):	180.74 hp 134.8 kW
PTO (tested):	210.25 hp 156.8 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	articulated power
Brakes:	hydraulic wet disc
Cab:	Sound-Gard Cab standard.
Transmissions:	12-speed partially synchronized
24-speed partial power shift

Capacity
Fuel:	220 gal 832.7 L
Hydraulic system:	37 gal 140.0 L

Hydraulics
Type:	closed-center pressure compensated
Capacity:	37 gal 140.0 L
Pump flow:	44.8 gpm 169.6 lpm
SCV flow:	33.3 gpm 126.0 lpm

Tractor hitch
Rear Type:	III
Rear lift:	14983 lbs 6796 kg

Power Take-off (PTO)
Rear RPM:	1000

8560 Serial Numbers
Location:	Data plate behind left-side step
1989:	1001
1990:	1501
1991:	2001
1992:	2331
1993:	3325

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Batteries:	2
Battery CCA:	925
Battery volts:	12

Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	466 ci 7.6 L
Bore/Stroke:	4.5625x4.75 inches 116 x 121 mm
Power:	235 hp 175.2 kW
Air cleaner:	dual paper elements
Compression:	16:1
Rated RPM:	2100
Firing order:	1-5-3-6-2-4
Starter volts:	12
Coolant capacity:	58 qts 54.9 L

Dimensions
Wheelbase:	133.9 inches 340 cm
Length:	268.9 inches 683 cm
Operating weight:	32075 lbs 14549 kg *Weight with 18.4R42 duals.
