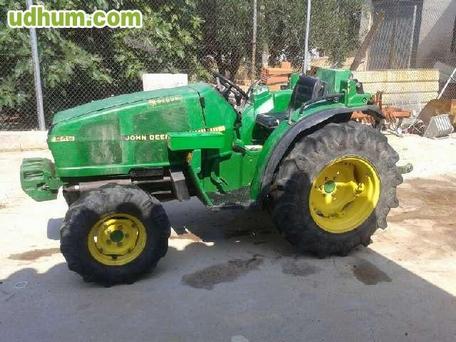

Deere 846

Production: 1996 - 2003

Production
Distributor:	John Deere
Manufacturer:	Goldini
Type:	Compact Utility tractor
Factory:	Italy

John Deere 846 Power
Engine:	27 hp 20.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	hydraulic rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post folding ROPS.
Transmission:	12-speed synchronized

Tractor hitch
Rear Type:	IN
Rear lift (at ends):	2205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@2607 1000@2615

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Lombardini
diesel
3-cylinder
liquid-cooled
Displacement:	81.2 ci 1.3 L
Power:	27 hp 20.1 kW
Air cleaner:	dry
Rated RPM:	2800
Starter:	electric
Starter volts:	12

Transmission
Type:	synchronized
Gears:	12 forward and 4 reverse
Clutch:	191mm hydraulic disc
Four gears in three ranges, plus reverse range.

Dimensions
Wheelbase:	59.8 inches 151 cm
Length:	107.9 inches 274 cm
Weight:	2381 lbs 1080 kg
