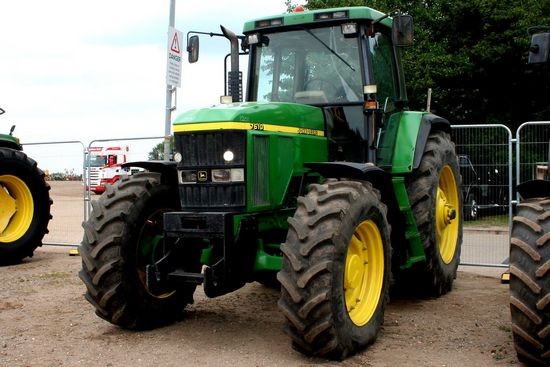

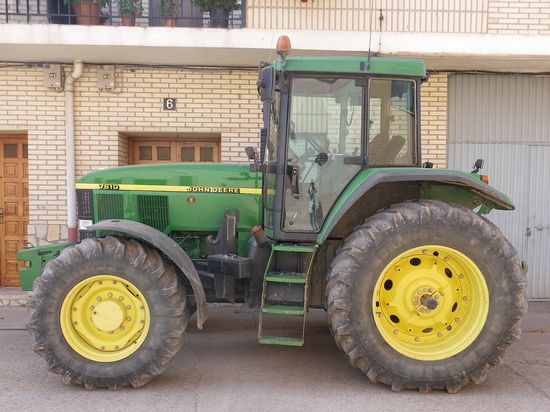

Deere 7610
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
John Deere 7610 Power | |
| Engine: | 140 hp 104.4 kW |
| PTO (claimed): | 120 hp 89.5 kW |
| Drawbar (tested): | 108.47 hp 80.9 kW |
| PTO (tested): | 126.83 hp 94.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | electro-hydraulic |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard. |
| Transmissions: | 16-speed partial power shift |
| 19-speed full power shift | |
| 20-speed partial power shift | |
Capacity | |
| Fuel: | 65 gal 246.0 L |
| 91 gal 344.4 L (optional) | |
| Front axle: | 15.2 qts 14.4 L |
| Front hubs: | 2 qts 1.9 L |
Hydraulics | |
| Type: | closed center pressure flow compensated (PFC) |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 2 to 5 |
| SCV flow: | 26 gpm 98.4 lpm |
Tractor hitch | |
| Rear Type: | IIIN/II |
| Rear lift: | 7725 lbs 3504 kg |
| 8925 lbs 4048 kg *Optional with two-wheel drive. | |
| 10050 lbs 4558 kg *Optional with four-wheel drive. | |
| Front Hitch: | IIIN/II*Optional |
| Front lift: | 7700 lbs 3492 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet discs |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@2100 1000@2100 |
7610 Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle. |
| 1997: | 1001 |
| 1998: | 10001 |
| 1999: | 20001 |
| 2000: | 30001 |
| 2001: | 50001 |
| 2002: | 70005 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 140 |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere PowerTech | |
| turbocharged aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement: | 414 ci 6.8 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Power: | 140 hp 104.4 kW |
| Fuel system: | mechanical direct injection |
| Air cleaner: | dual dry element |
| Compression: | 17:1 |
| Rated RPM: | 2100 |
| Idle RPM: | 800-2325 |
| Torque: | 420 lb-ft 569.5 Nm |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Coolant capacity: | 25 qts 23.7 L |
Dimensions | |
| 2WD Wheelbase: | 114.4 inches 290 cm |
| 4WD Wheelbase: | 110.2 inches 279 cm |
| Length: | 173 inches 439 cm |
| Width: | 117 inches 297 cm |
| Height: | 110 inches 279 cm |
| Rear axle: | 3.62 by 96 inches 91 by 2438 mm |
| Rear axle: | 3.62 by 110.5 inches 91 by 2806 mm |
| Rear axle: | 3.62 by 118.6 inches 91 by 3012 mm |
| Rear tread: | 60 to 85.7 inches 152 to 217 cm (2.5m axle) |
| Rear tread: | 60 to 100.3 inches 152 to 254 cm (2.8m axle) |
| Rear tread: | 60 to 108.3 inches 152 to 275 cm (3.0m axle) |
