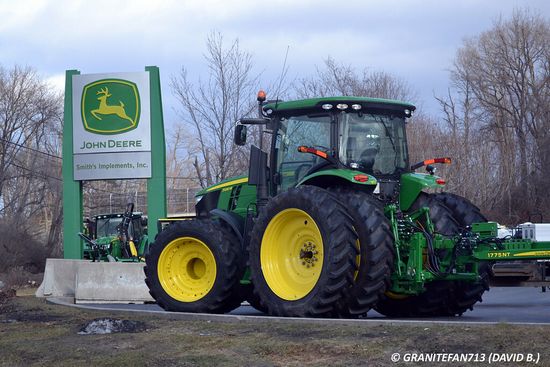

Deere 7230R
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
John Deere 7230R Power | |
| Engine (gross): | 230 hp 171.5 kW |
| Engine (max): | 253 hp 188.7 kW |
| PTO (claimed): | 189 hp 140.9 kW |
| Drawbar (tested): | 179.34 hp 133.7 kW |
| PTO (tested): | 225.07 hp 167.8 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | full-locking electrohydraulic rear. Limited slip front axle. Electrohydraulic on TLS Plus front axle with front brakes. |
| Steering: | hydrostatic power |
| ActiveCommand Steering optional | |
| Cab: | CommandView II Cab. AutoTrac ready. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available. |
| Transmissions: | 16-speed partial power shift |
| 20-speed partial power shift | |
| 20-speed power shift | |
| infinitely variable transmission | |
Hydraulics | |
| Type: | closed-center pressure and flow compensated (PFC) |
| Pressure: | 2958 psi 204.0 bar |
| Rear valves: | 6 (max) |
| Mid valves: | 0 to 2 |
| Pump flow: | 32 gpm 121.1 lpm |
| 43 gpm 162.8 lpm (optional) | |
| 59 gpm 223.3 lpm (optional) | |
| SCV flow: | 35 gpm 132.5 lpm |
Tractor hitch | |
| Rear Type: | 3/3N |
| Control: | electrohydraulic sensing |
| Rear lift: | 12,000 lbs 5443 kg |
| 15,200 lbs 6894 kg (optional) | |
| Front Hitch: | 3N (optional) |
| Front lift: | 11,464 lbs 5200 kg |
| Drawbar: | Category 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional. |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
| 540/1000 (1.375/1.75) | |
| 540/540E/1000 (1.375/1.75) | |
| 540/540E/1000/1000E (1.375/1.75) | |
| Engine RPM: | 540@1950 540E@1750 1000@1950 1000E@1950 |
| Front PTO: | optional |
| Front RPM: | 1000 (1.375) |
| 1000 (1.75) | |
7230R Serial Numbers | |
| Location: | Front-right of main tractor frame, above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery CCA: | 925 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere PowerTech PSX | |
| turbocharged aftercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 548 ci 9.0 L |
| Bore/Stroke: | 4.66x5.35 inches 118 x 136 mm |
| Emissions: | Tier 4A |
| Emission control: | exhaust gas recirculation (EGR) |
| Rated Power (EC 97/98): | 230 hp 171.5 kW |
| Maximum Power (EC 97/68): | 253 hp 188.7 kW |
| Fuel system: | electronic high-pressure common rail |
| Air cleaner: | dual stage dry |
| Compression: | 16:1 |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 115.2 inches 292 cm |
| Front axle: | 1300 Series standard |
| Front axle: | Triple-Link Suspension Plus optional |
| Rear axle: | Standard axle: 3.94 by 118.5 inches 100 by 3009 mm |
| Rear axle: | 3.94 by 100.4 inches 100 by 2550 mm |
| Rear axle: | 3.94 by 110.5 inches 100 by 2806 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
