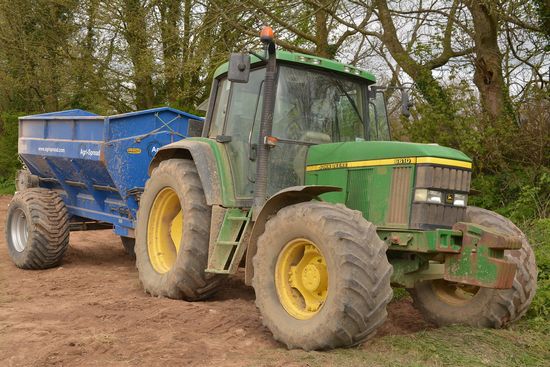

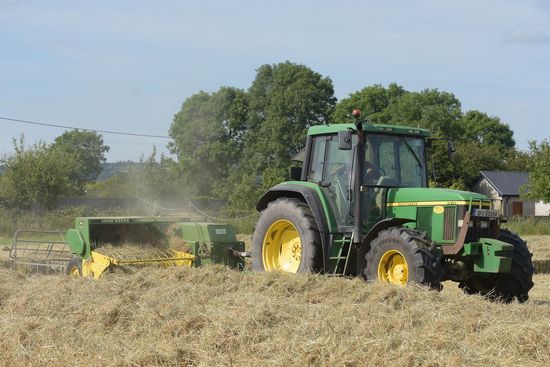

Deere 6610

Production: 1997 - 2001

Production
Manufacturer:	John Deere
Type:	Row-Crop tractor

John Deere 6610 Power
Engine:	114 hp 85.0 kW
PTO (claimed):	101 hp 75.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Cab:	ROPS. Cab optional.
Transmission:	24-speed

Hydraulics
Type:	closed-center load sensing
Pressure:	2900 psi 200.0 bar

Tractor hitch
Rear Type:	II
Rear Arms:	telescopic link ends

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@2143 540E@1684 1000@2208
Front PTO:	independent
Front RPM:	1000
Engine RPM:	1000@2185

6610 Serial Numbers
Location:	Plate located on right side of main tractor frame.

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	90
115
Battery volts:	12

Engine Detail
John Deere
turbocharged diesel
6-cylinder
Displacement:	414 ci 6.8 L
Bore/Stroke:	4.19x5.00 inches 106 x 127 mm
Power:	114 hp 85.0 kW
Rated RPM:	2300
Torque:	359 lb-ft 486.8 Nm
Torque RPM:	1300
Firing order:	1-5-3-6-2-4
Starter volts:	12
Starter power:	4.1 hp 3.1 kW
Oil capacity:	20.8 qts 19.7 L
Coolant capacity:	13.6 qts 12.9 L
16.4 qts 15.5 L (cab)
Intake valve clearance:	0.014 inches 0.356 mm
Exhaust valve clearance:	0.018 inches 0.457 mm

Transmission
Transmission:	John Deere PowrQuad
Gears:	24 forward and reverse

Dimensions
Wheelbase:	104.3 inches 264 cm
Length:	178.5 inches 453 cm
Width:	91.3 inches 231 cm
Height:	110.6 inches 280 cm
Shiping weight:	10400 lbs 4717 kg
Max weight:	18,740 lbs 8500 kg
Clearance (front axle):	20.5 inches 52 cm
Front tread:	63.5 to 83.2 inches 161 to 211 cm
Rear tread:	63.5 to 84.2 inches 161 to 213 cm
