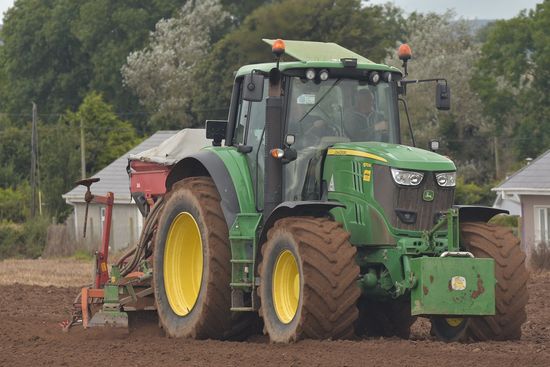

Deere 6170M
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| Original price: | $118,344 (2014 PowrQuad PLUS 16 Cab 2WD ) |
| Original price: | $130,807 (2014 AutoQuad Cab 4WD ) |
John Deere 6170M Power | |
| Engine (gross): | 170 hp 126.8 kW |
| Engine (max): | 173 hp 129.0 kW |
| PTO (claimed): | 142 hp 105.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | Electro-hydraulic rear |
| limit-slip front (4WD) | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab with air-conditioning. GreenStar (optional) |
| AutoTrac (optional) | |
| Transmissions: | 16-speed partial power shift |
| 20-speed partial power shift | |
Capacity | |
| Fuel: | 107 gal 405.0 L |
| Hydraulic system: | 15.8 gal 59.8 L |
Hydraulics | |
| Type: | closed center load sensing pressure and flow compensated |
| Capacity: | 15.8 gal 59.8 L |
| Pressure: | 2900 psi 200.0 bar |
| Rear valves: | 1 to 3 |
| Mid valves: | 2 or 3 (optional) |
| Pump flow: | 30 gpm 113.6 lpm |
| SCV flow: | 26.4 gpm 99.9 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electrohydraulic load sensing |
| Rear lift (at 24"/610mm): | 8360 lbs 3792 kg |
| 10582 lbs 4799 kg (optional) | |
| Drawbar: | Cat. II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@1932 1000@1932 |
6170M Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| 150 (optional) | |
| Charging volts: | 14 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere PowerTech PVX | |
| variable geometry turbocharger with intercooler diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 415 ci 6.8 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Interim Tier IV |
| Emission control: | cooled exhaust gas recirculation |
| Rated Power (EC 97/98): | 170 hp 126.8 kW |
| Maximum Power (EC 97/68): | 173 hp 129.0 kW |
| Fuel system: | high pressure common rail |
| Compression: | 16.5:1 |
| Rated RPM: | 2100 |
| Torque: | 566 lb-ft 767.5 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 24.8 qts 23.5 L |
| Coolant capacity: | 29.8 qts 28.2 L |
Dimensions | |
| Wheelbase: | 110.2 inches 279 cm |
| Weight: | 15664 lbs 7105 kg |
| Max weight: | 24912 lbs 11300 kg |
| Clearance (front axle): | 20.47 inches 51 cm (4WD) |
| Rear axle: | Bar: 3.622 by 100.4 inches 91 by 2550 mm |
| Front tread: | 63.3 to 87.4 inches 160 to 221 cm (2WD) |
