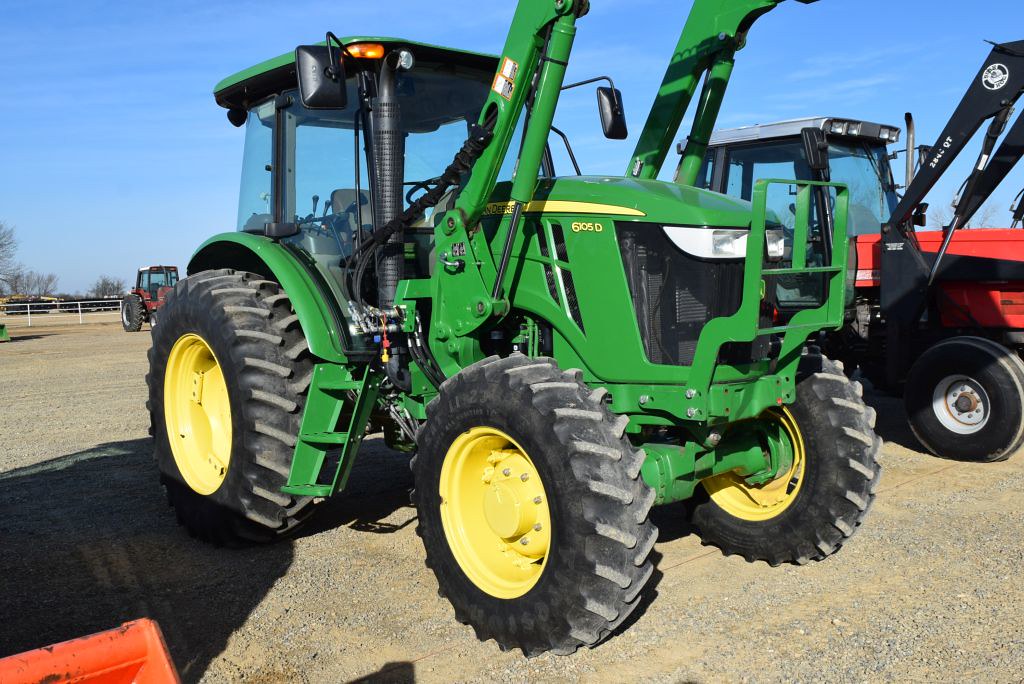

Deere 6105D
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Saltillo, Mexico |
| Original price: | $47,396 (2014 ROPS 2WD ) |
| Original price: | $62,966 (2014 Cab 4WD ) |
John Deere 6105D Power | |
| Engine (gross): | 105 hp 78.3 kW |
| PTO (claimed): | 87 hp 64.9 kW |
| PTO (tested): | 91.22 hp 68.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | mechanical rear |
| limited-slip front differential (4WD) | |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post foldable ROPS. Cab optional with air-conditioning. |
| Transmissions: | 9-speed partially synchronized |
| 12-speed partially synchronized | |
| 24-speed partially synchronized | |
Hydraulics | |
| Type: | open center |
| Pressure: | 2828 psi 195.0 bar |
| Valves: | 2 or 3 |
| Pump flow: | 20 gpm 75.7 lpm |
| SCV flow: | 20 gpm 75.7 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position control |
| draft-control optional | |
| Rear lift (at 24"/610mm): | 5500 lbs 2494 kg |
| 7300 lbs 3311 kg (optional) | |
| Drawbar: | Cat. II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@2085 1000@2067 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| John Deere PowerTech PWX | |
| wastegate turbocharger with aftercooled diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled | |
| Displacement: | 275 ci 4.5 L |
| Bore/Stroke: | 4.17x5.00 inches 106 x 127 mm |
| Emissions: | Interim Tier IV |
| Emission control: | cooled exhaust gas recirculation |
| Rated Power (EC 97/98): | 105 hp 78.3 kW |
| Compression: | 19:1 |
| Rated RPM: | 2200 |
| Torque: | 312 lb-ft 423.1 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 15.85 qts 15.0 L |
| Coolant capacity: | 18.7 qts 17.7 L |
Dimensions | |
| 2WD Wheelbase: | 96.7 inches 245 cm |
| 4WD Wheelbase: | 96.5 inches 245 cm |
| 2WD Length: | 168.5 inches 427 cm |
| 4WD Length: | 166 inches 421 cm |
| Width: | 96.5 inches 245 cm *Width at rear axle flange. |
| Height (cab): | 108 inches 274 cm |
| Height (exhaust): | 110 inches 279 cm |
| 2WD Clearance (front axle): | 23.5 inches 59 cm |
| 4WD Clearance (front axle): | 18 inches 45 cm |
| Rear axle: | Flange |
| Front tread: | 60.4 to 80.4 inches 153 to 204 cm (2WD) |
| Front tread: | 59.7 to 79.4 inches 151 to 201 cm (4WD) |
