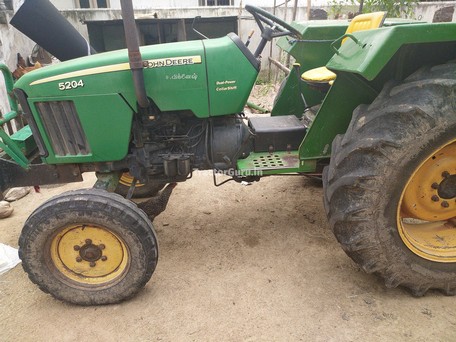

Deere 5204
Contents:
Production | |
| Manufacturer: | John Deere |
| Factory: | Pune, Maharashtra, India |
John Deere 5204 Power | |
| Engine: | 50 hp 37.3 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Steering: | power*Optional |
| Brakes: | mechanical wet disc |
| Cab: | Open operator station. ROPS optional. |
| Transmission: | 8-speed collar shift gear |
Hydraulics | |
| Type: | open center |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift (at ends): | 3417 lbs 1549 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@2200 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
| Battery volts: | 12 |
| Battery AH: | 88 |
Engine Detail | |
| John Deere | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Power: | 50 hp 37.3 kW |
| Fuel system: | direct injection |
| Air cleaner: | dry |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
| Starter power: | 3.4 hp 2.5 kW |
Transmission | |
| Type: | collar shift gear |
| Gears: | 8 forward and 4 reverse |
| Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range. | |
Dimensions | |
| Wheelbase: | 76.8 inches 195 cm |
| Length: | 132.3 inches 336 cm |
| Width: | 70.5 inches 179 cm |
| Weight: | 4023 lbs 1824 kg |
| Ground clearance: | 16.5 inches 41 cm |
