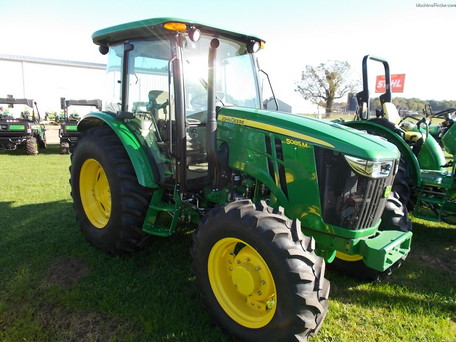

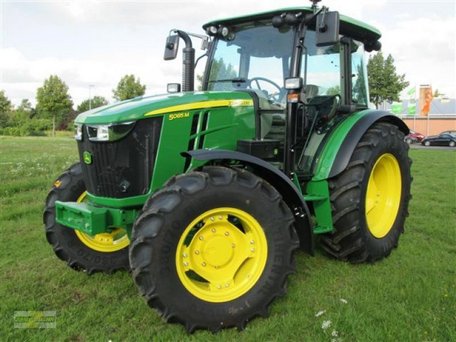

Deere 5085M
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Augusta, Georgia, USA |
| Original price: | $41,671 (2WD ROPS) |
| $52,340 (4WD cab) | |
John Deere 5085M Power | |
| Engine: | 85 hp 63.4 kW |
| PTO (claimed): | 70 hp 52.2 kW |
| PTO (tested): | 74.07 hp 55.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Final drives: | inboard planetary |
| Differential lock: | shift-on-the-move electro-hydraulic rear differential lock |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning. |
| Transmissions: | 16-speed partially synchronized |
| 12-speed partially synchronized | |
| 16-speed partially synchronized with power shuttle | |
| 32-speed | |
Capacity | |
| Fuel: | 30.3 gal 114.7 L (ROPS) |
| 40.7 gal 154.0 L (cab) | |
| Hydraulic system: | 11.9 gal 45.0 L |
| Front hubs: | 0.84 qts 0.8 L (each) |
| Front diff.: | 5.3 qts 5.0 L |
Hydraulics | ||
| Type: | open center | |
| Capacity: | 11.9 gal 45.0 L | |
| Pressure: | 2828 psi 195.0 bar | |
| Valves: | 0, 2 or 3 (rear) | |
| 0, 2 or 3 (mid) | ||
| Pump flow: | 18.4 gpm 69.6 lpm | |
| Total flow: | 24.7 gpm 93.5 lpm | |
| Oil type: | -10oF [-23oC]↑ | : HY-GARD |
| -10oF [-23oC]↑ | : JDM J20C | |
| 10o↔104oF [-12o↔40oC] | : BIO HY-GARD JDM 20D | |
Tractor hitch | |
| Rear Type: | II/I |
| Rear lift (at 24"/610mm): | 3,595 lbs 1630 kg |
| 4,498 lbs 2040 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent electrohydraulic |
| Rear RPM: | 540/540E |
| 540/540E/1000 (optional) | |
5085M Serial Numbers | |
| Location: | Tractor frame on front left side. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 70 (ROPS) |
| 90 (cab) | |
| 120 (optional) | |
| Battery CCA: | 925 |
| Battery volts: | 12 |
| Battery Group: | 31 |
Engine Detail | |
| John Deere PowerTech M 4045 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Tier 3 |
| Power: | 85 hp 63.4 kW |
| Air cleaner: | dry |
| Rated RPM: | 2200 |
| Torque: | 331 lb-ft 448.8 Nm |
| Torque RPM: | 1600 |
| Starter volts: | 12 |
| Coolant capacity: | 12 qts 11.4 L |
Dimensions | |
| Ground clearance: | 18.8 inches 47 cm (front axle) |
| Front tread: | 57.6 to 82.6 inches 146 to 209 cm (2WD) |
| Front tread: | 52.8 to 75 inches 134 to 190 cm (4WD) |
| Rear tread: | 53.1 to 80.9 inches 134 to 205 cm |
