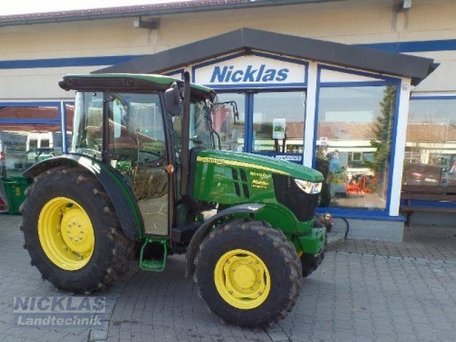

Deere 5080G

Production: 2009 - 2013

Production
Distributor:	John Deere
Manufacturer:	Agritalia
Type:	Utility tractor
Factory:	Rovigo, Italy

Variants

utility

orchard

vineyard

John Deere 5080G Power
Engine:	80 hp 59.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	ROPS (2- or 4-post). Cab optional.
Transmissions:	12-speed
24-speed

Hydraulics
Pressure:	2700 psi 186.2 bar
Pump flow:	11.9 gpm 45.0 lpm
15.6 gpm 59.0 lpm *Optional
Steering flow:	6.5 gpm 24.6 lpm
Steering press.:	1900 psi 131.0 bar

Tractor hitch
Rear Type:	II/I
Rear lift:	5,845 lbs 2651 kg

Power Take-off (PTO)
Rear RPM:	540/540E/ground
540/1000/ground

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45
95 (cab)
Battery volts:	12
Battery AH:	100

Engine Detail
John Deere 4045HAT80
turbocharged aftercooled diesel
4-cylinder
liquid-cooled
Displacement:	275.5 ci 4.5 L
Bore/Stroke:	4.19x5.00 inches 106 x 127 mm
Emissions:	Stage IIIA
Power:	80 hp 59.7 kW
Compression:	19.0:1
Rated RPM:	2300
Torque:	239.7 lb-ft 325.0 Nm
Torque RPM:	1600
Firing order:	1-3-4-2
Starter:	electric
Starter volts:	12
Starter power:	3.8 hp 2.8 kW
Coolant capacity:	11 qts 10.4 L
13.7 qts 13.0 L (cab)
Coolant change:	2000 h
Intake valve clearance:	0.014 inches 0.356 mm
Exhaust valve clearance:	0.018 inches 0.457 mm

Dimensions
Wheelbase:	86 inches 218 cm
Length:	153 inches 388 cm
Width:	89 inches 226 cm
Shiping weight:	6,724 lbs 3050 kg (2WD)
7,055 lbs 3200 kg (4WD)
Front tread:	53 to 63 inches 134 to 160 cm (2WD)
Front tread:	53 to 74 inches 134 to 187 cm (4WD)
Rear tread:	54 to 75 inches 137 to 190 cm
