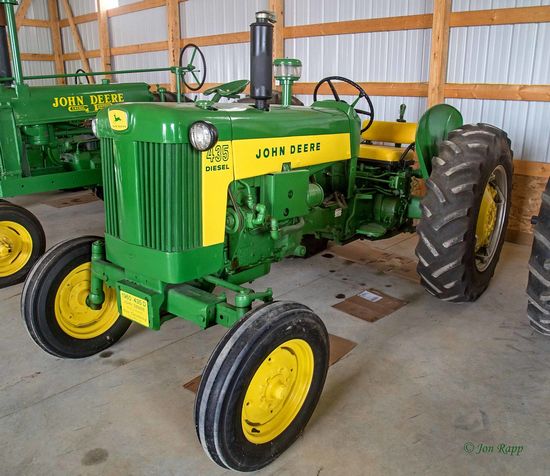

Deere 435
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factories: | Dubuque, Iowa, USA |
| Monterrey, Mexico | |
| Total built: | 4,626 |
| Original price: | $3,000 (1960) |
| The 435 was the first John Deere tractor released after the new PTO standards were adopted in 1958. It was also the first Deere tractor to have its horsepower rated in terms of PTO after Nebraska dropped the belt test in 1959. | |
John Deere 435 Power | |
| Plows: | 2-3 |
| Drawbar (tested): | 27.59 hp 20.6 kW |
| PTO (tested): | 32.91 hp 24.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| power optional after 1960 (SN 436452) | |
| Brakes: | differential mechanical dry disc |
| Cab: | Open operator station. |
| Transmissions: | 4-speed gear |
| 5-speed gear | |
Hydraulics | |
| Type: | open |
Tractor hitch | |
| Rear Type: | I |
Power Take-off (PTO) | |
| Rear PTO: | live |
| Rear RPM: | 540/1000 |
435 Serial Numbers | |
| Location: | Below the tractor's instrument panel. |
| 1959: | 435001 |
| 1960: | 435961 |
| End: | 439626 |
Engine Detail | |
| General Motors 2-53 | |
| supercharged diesel | |
| 2-cylinder | |
| liquid-cooled | |
| 2-cycle engine | |
| Displacement: | 106.1 ci 1.7 L |
| Bore/Stroke: | 3.875x4.50 inches 98 x 114 mm |
| Air cleaner: | oil bath |
| Compression: | 17:1 |
| Rated RPM: | 1850 |
| Starter volts: | 12 |
| Oil capacity: | 9 qts 8.5 L |
| Coolant capacity: | 10 qts 9.5 L |
Dimensions | |
| Wheelbase: | 85 inches 215 cm |
| Length: | 136.125 inches 345 cm |
| Width: | 85.75 inches 217 cm |
| Height: | 71.5 inches 181 cm |
| Shiping weight: | 3,750 lbs 1701 kg |
