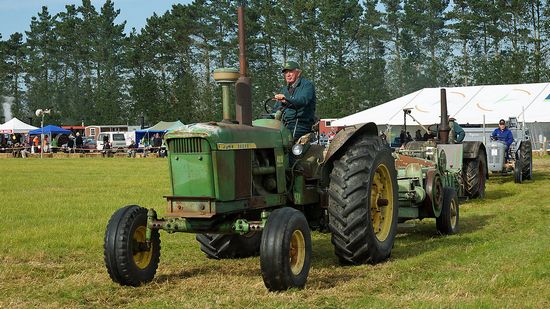

Deere 4010
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factories: | Waterloo, Iowa, USA |
| Mexico | |
| Original price: | $5,500 (1963) |
Variants | |
| ag tractor | |
| industrial tractor |
John Deere 4010 Power | |
| PTO (claimed): | 80 hp 59.7 kW |
| Drawbar (tested): | 71.93 hp 53.6 kW |
| PTO (tested): | 84.00 hp 62.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power assist |
| Brakes: | differential hydraulic wet disc |
| Cab: | Open operator station. |
| Transmission: | 8-speed partially synchronized |
Hydraulics | |
| Type: | closed center |
| Valves: | 2 |
| Pump flow: | 13 gpm 49.2 lpm |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| 1000 | |
4010 Serial Numbers | |
| Location: | Serial number plate on the rear of the tractor, above the PTO shaft. |
| 1961: | 1000 |
| 1962: | 20201 |
| 1963: | 38200 |
| Final: | 59316 |
Electrical | |
| Ground: | positive (12V) |
| floating (24V) | |
| Batteries: | 1 (gas) |
| 2 (diesel) | |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| gasoline | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 302 ci 4.9 L |
| Bore/Stroke: | 4.00x4.00 inches 102 x 102 mm |
| Compression: | 7.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Coolant capacity: | 24 qts 22.7 L |
Transmission | |
| Transmission: | John Deere Syncro-Range |
| Type: | partially synchronized |
| Gears: | 8 forward and 3 reverse |
| Clutch: | dry disc |
| Synchro-Range requires the tractor to be stopped and clutch depressed to select one of four shift stations. Once a station is selected the tractor can be shifted on the move between the two forward gears (and single reverse in stations 1, 2, and 3) by using the clutch. | |
Dimensions | |
| Wheelbase: | 99.25 inches 252 cm |
| Operating weight: | 7,100 lbs 3220 kg |
| Ballasted weight: | 9,595 lbs 4352 kg |
| Rear axle: | 3.125 inch diameter 79 mm |
| Front tread: | 8.375 to 18.25 inches 21 to 46 cm (tricycle) |
| Rear tread: | 60 to 88 inches 152 to 223 cm |
