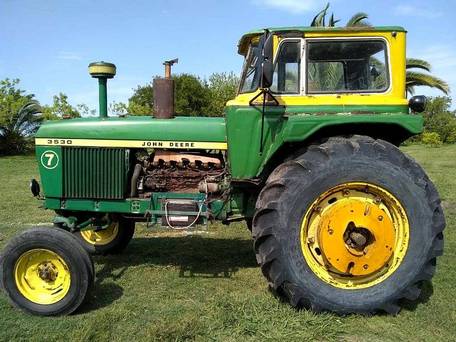

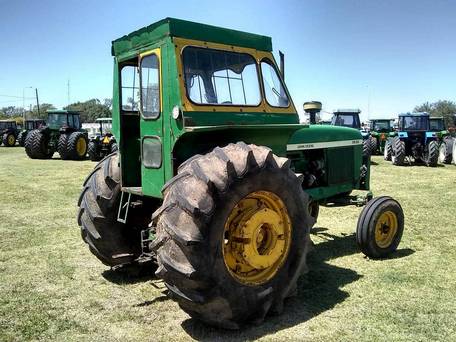

Deere 3530

Production: 1975 - 1980

Production
Manufacturer:	John Deere
Type:	Row-Crop tractor
Factory:	Rosario, Argentina

John Deere 3530 Power
Engine:	105 hp 78.3 kW
PTO (claimed):	91.9 hp 68.5 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Cab:	Open operator station.
Transmission:	8-speed

Capacity
Fuel:	38.3 gal 145.0 L
Hydraulic system:	12.9 gal 48.8 L

Hydraulics
Type:	closed center
Capacity:	12.9 gal 48.8 L

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	28
Battery volts:	12
Battery AH:	110

Engine Detail
John Deere
diesel
6-cylinder
liquid-cooled
Displacement:	328.9 ci 5.4 L
Bore/Stroke:	4.016x4.331 inches 102 x 110 mm
Power:	105 hp 78.3 kW
Fuel system:	direct injection
Rated RPM:	2500
Starter volts:	12
Oil capacity:	13.75 qts 13.0 L
Coolant capacity:	21.1 qts 20.0 L

Transmission
Transmission:	Syncro-Range
Gears:	8 forward and 2 reverse
Oil capacity:	51.8 qts 49.0 L

Dimensions
Wheelbase:	103.5 inches 262 cm
Length:	162.2 inches 411 cm
Width:	89.8 inches 228 cm *Minimum width
Shiping weight:	12070 lbs 5474 kg
Ground clearance:	26.4 inches 67 cm
