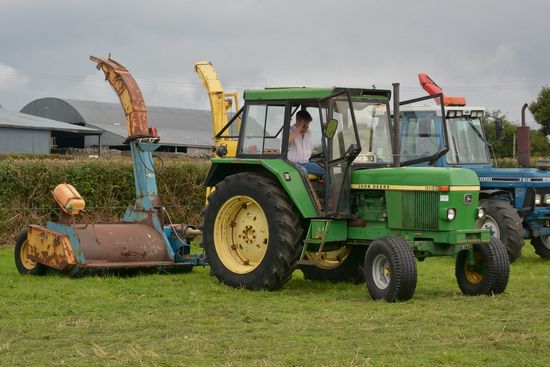

Deere 3130
Contents:
Production | |
| Manufacturer: | John Deere |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| The John Deere 3130 saw a redesign in 1975 at tractor serial number 182150. The front, hood, and decals were changed to a more rounded appearance. The 3130 was sold as the 2840 in the United States. | |
Variants | |
| 3130LS: | 12-speed |
John Deere 3130 Power | |
| Engine (gross): | 96.5 hp 72.0 kW |
| Engine (net): | 87.2 hp 65.0 kW |
| PTO (claimed): | 75.1 hp 56.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Open operator station. Cab optional. |
| Transmissions: | 12-speed |
| 6-speed sliding gear | |
Capacity | |
| Fuel: | 28 gal 106.0 L |
| Hydraulic system: | 15 gal 56.8 L |
Hydraulics | |
| Type: | closed center |
| Capacity: | 15 gal 56.8 L |
| Pump flow: | 23 gpm 87.1 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift: | 7452 lbs 3380 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@2200 1000@2200 |
3130 Serial Numbers | |
| Location: | Serial number plate on the front-right of the 3130 tractor frame, above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 28 |
| 55 | |
| Charging volts: | 14 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 88 |
Engine Detail | |
| John Deere | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| The 3130 engine could be ordered with an optional turbocharger (TA 3401) as an altitude compensator. | |
| Displacement: | 329 ci 5.4 L |
| Bore/Stroke: | 4.02x4.33 inches 102 x 110 mm |
| Power (gross): | 96.5 hp 72.0 kW |
| Fuel system: | direct injection |
| Air cleaner: | dry |
| Compression: | 16.2:1 |
| Rated RPM: | 2500 |
| Idle RPM: | 650-2660 |
| Operating RPM: | 1300-2500 |
| Torque: | 218.3 lb-ft 296.0 Nm |
| Torque RPM: | 1300 |
| Starter volts: | 12 |
| Oil capacity: | 10.9 qts 10.3 L |
| Coolant capacity: | 20 qts 18.9 L |
Dimensions | |
| Wheelbase: | 96.9 inches 246 cm |
| Length: | 157.5 inches 400 cm |
| Width: | 81.8 inches 207 cm *Minimum width. |
| Height: | 103.5 inches 262 cm |
| Weight: | 8200 lbs 3719 kg |
| Rear axle: | Flange |
| Rear axle: | Rack-and-pinion |
| Front tread: | 56.9 to 77 inches 144 to 195 cm |
| Rear tread: | 63 to 78.7 inches 160 to 199 cm (flange) |
| Rear tread: | 63 to 99 inches 160 to 251 cm (rack-and-pinion) |
