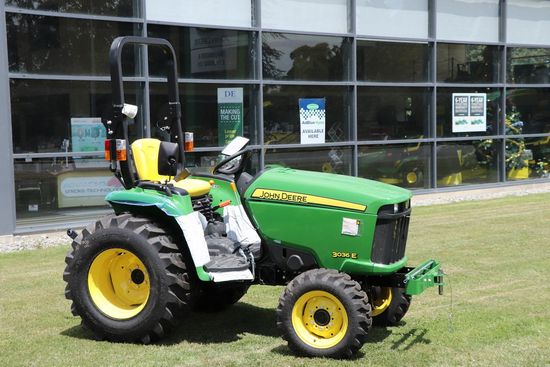

Deere 3036E

Production: 2009 - 2017

Production
Manufacturer:	John Deere
Type:	Compact Utility tractor

John Deere 3036E Power
Engine (gross):	36.6 hp 27.3 kW
Engine (net):	33.5 hp 25.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Hydraulics
Pressure:	2495 psi 172.0 bar
Pump flow:	5.3 gpm 20.1 lpm
Steering flow:	4 gpm 15.1 lpm

Tractor hitch
Rear Type:	I
Rear lift:	1356 lbs 615 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar 3TNV84T
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	91.3 ci 1.5 L
Bore/Stroke:	3.31x3.54 inches 84 x 90 mm
Rated Power (ECE R24):	33.5 hp 25.0 kW
Rated Power (EC 97/98):	36.6 hp 27.3 kW
Fuel system:	direct injection
Rated RPM:	2600
Torque:	88.5 lb-ft 120.0 Nm
Torque RPM:	1800
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Length:	111 inches 281 cm
Width:	56.5 inches 143 cm
Height (ROPS):	91.4 inches 232 cm
Ground clearance:	13 inches 33 cm
