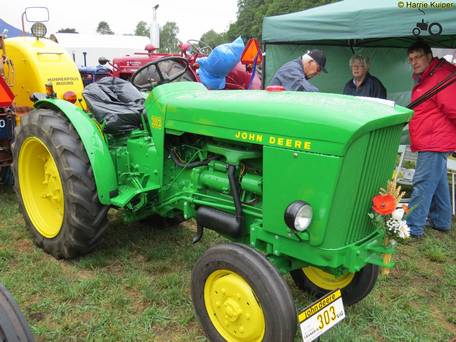

Deere 303
Contents:
Production | |
| Manufacturer: | John Deere |
| Factory: | Saran, France |
John Deere 303 Power | |
| Engine: | 36.3 hp 27.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | 10-speed |
Capacity | |
| Fuel: | 16.4 gal 62.1 L |
| Hydraulic system: | 2.6 gal 9.8 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 2.6 gal 9.8 L |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@1850 |
Electrical | |
| Ground: | positive |
| Battery volts: | 12 |
| Battery AH: | 95 |
Engine Detail | |
| Standard OE 138 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 137.9 ci 2.3 L |
| Bore/Stroke: | 3.31x4.00 inches 84 x 102 mm |
| Power: | 36.3 hp 27.1 kW |
| Compression: | 21.5:1 |
| Rated RPM: | 2000 |
| Starter volts: | 12 |
| Oil capacity: | 7.2 qts 6.8 L |
| Coolant capacity: | 10.6 qts 10.0 L |
Transmission | |
| Gears: | 10 forward and 3 reverse |
| Clutch: | dry disc |
| Oil capacity: | 32.8 qts 31.0 L |
| Four gears (1-4) in three ranges (I, II, and III) plus reverse range. Fourth gear is the same speed on all the forward ranges. | |
Dimensions | |
| Wheelbase: | 74.1 inches 188 cm |
| Length: | 132.7 inches 337 cm |
| Width: | 60 inches 152 cm *Minimum |
| Height (steering wheel): | 61.8 inches 156 cm |
| Weight: | 3836 lbs 1740 kg |
| Ground clearance: | 14.2 inches 36 cm |
| Front tread: | 50 to 69.7 inches 127 to 177 cm |
| Rear tread: | 48.8 to 76.8 inches 123 to 195 cm |
