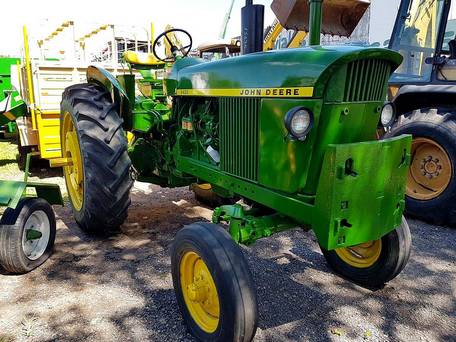

Deere 2420

Production: 1970 - 1975

Production
Manufacturer:	John Deere
Type:	Row-Crop tractor
Factory:	Rosario, Argentina

John Deere 2420 Power
Engine:	66 hp 49.2 kW

Mechanical
Chassis:	4x2 2WD
Final drives:	planetary
Steering:	power
Brakes:	hydraulic disc
Cab:	Open operator station.
Transmission:	8-speed

Hydraulics
Type:	closed center

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

2420 Serial Numbers
Location:	Serial number plate below the steering column.

Electrical
Charging system:	alternator
Charging amps:	28
Batteries:	2
Battery volts:	6

Engine Detail
John Deere
diesel
4-cylinder
liquid-cooled
Displacement:	218.5 ci 3.6 L
Bore/Stroke:	3.843x4.331 inches 98 x 110 mm
Power:	66 hp 49.2 kW
Air cleaner:	dry
Compression:	16.7:1
Rated RPM:	2500
Torque:	161 lb-ft 218.3 Nm
Torque RPM:	1250
Starter volts:	12

Transmission
Transmission:	Syncro-Range
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	90.2 inches 229 cm
Length:	151.2 inches 384 cm
Shiping weight:	6993 lbs 3172 kg
Ground clearance:	12.6 inches 32 cm
