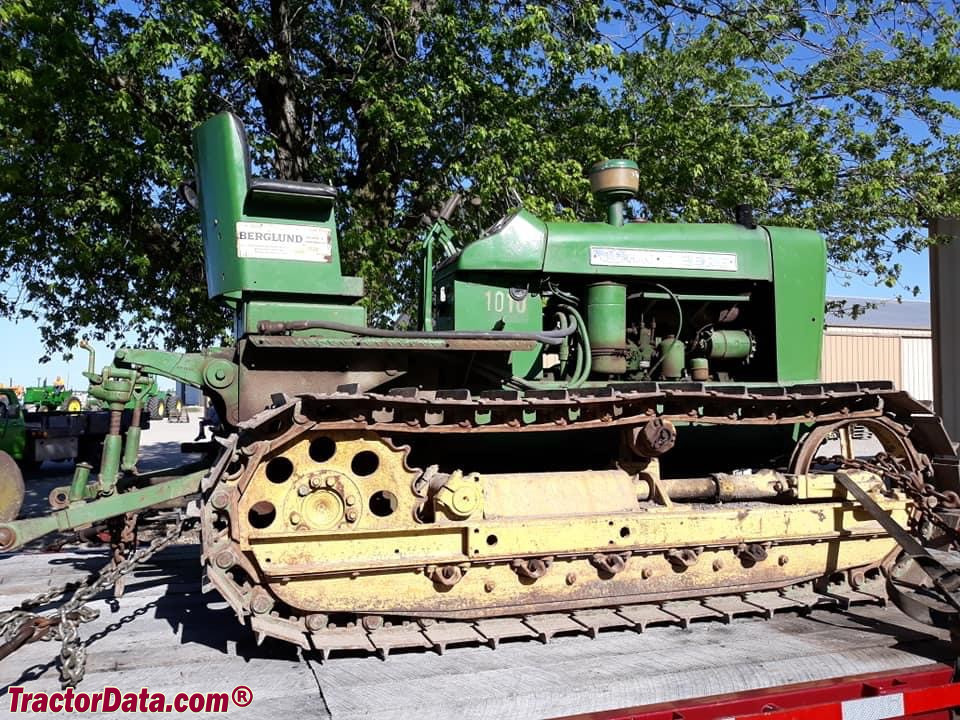

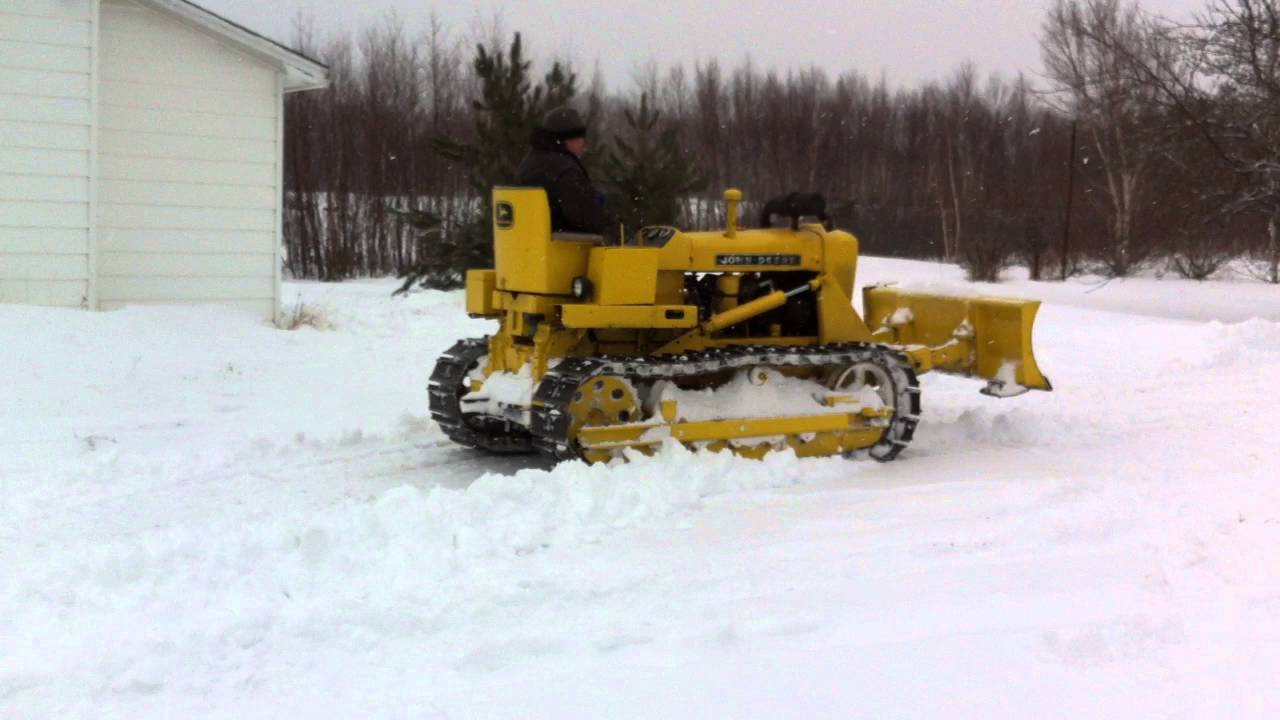

Deere 1010C

Production: 1960 - 1964

Production
Manufacturer:	John Deere
Type:	Agricultural Crawler tractor
Factory:	Dubuque, Iowa, USA
Total built:	506 (total)
379 (gas)
127 (diesel)

Variants

farm tractor

farm crawler

industrial tractor

industrial crawler

John Deere 1010C Power
PTO (claimed):	35 hp 26.1 kW
Plows:	4
Drawbar (tested):	28.71 hp 21.4 kW
PTO (tested):	36.31 hp 27.1 kW

Mechanical
Chassis:	crawler
Steering:	multiple disc clutch and brake
Brakes:	mechancial contracting band
Cab:	Open operator station.
Transmission:	4-speed gear

Tractor hitch
Rear Type:	I*Optional

Power Take-off (PTO)
Rear PTO:	transmission
Rear RPM:	540

1010C Serial Numbers
1960:	10001
1961:	13692
1962:	23630
1963:	32188
1964:	43900
1965:	53722
Final:	57312

Electrical
Ground:	positive
Batteries:	1 (gas)
2 (diesel)
Battery volts:	12

Engine Detail
John Deere
gasoline
4-cylinder
liquid-cooled
Displacement:	115.5 ci 1.9 L
Bore/Stroke:	3.50x3.00 inches 89 x 76 mm
Air cleaner:	oil bath
Compression:	oil bath
Rated RPM:	2500
Starter volts:	12

Transmission
Transmission:	John Deere
Type:	gear
Gears:	4 forward and 1 reverse

Dimensions
Length:	102.1 inches 259 cm
Width:	61.1 inches 155 cm
Height (hood):	53.6 inches 136 cm
Operating weight:	7,580 lbs 3438 kg
Gauge:	48 inches 121 cm
