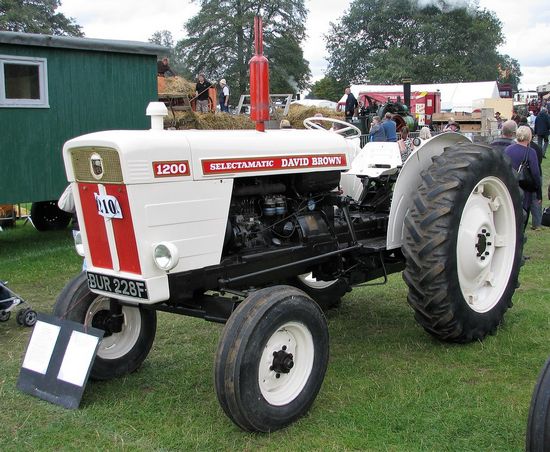

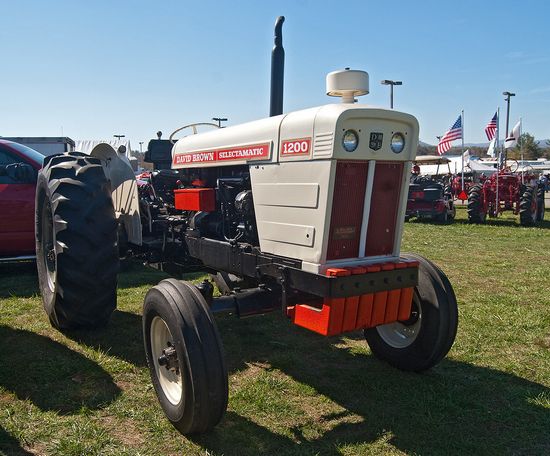

David Brown 1200 Selectamatic
Contents:
Production | |
| Manufacturer: | David Brown |
| Factory: | Meltham Mills, Huddersfield, England |
| Original price: | $6,700 (1971 ) |
David Brown 1200 Power | |
| Engine (gross): | 72 hp 53.7 kW |
| PTO (claimed): | 64.6 hp 48.2 kW |
| Drawbar (tested): | 54.76 hp 40.8 kW |
| PTO (tested): | 65.23 hp 48.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD*Four-wheel drive became an option in 1970. | |
| Cab: | Open operator station. |
| Transmissions: | 6-speed gear |
| 12-speed | |
Hydraulics | |
| Type: | Selectamatic |
| Pump flow: | 6.86 gpm 26.0 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 2200 lbs 997 kg (working) |
| 3450 lbs 1564 kg (rated) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| 540/1000 | |
1200 Serial Numbers | |
| Location: | Clutch housing |
| 1967: | 700001 |
| 1968: | 704433 |
| 1969: | 707958 |
| 1970: | 712203 |
| 1971: | 716091 |
Engine Detail | |
| David Brown | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 219.4 ci 3.6 L |
| Bore/Stroke: | 3.94x4.50 inches 100 x 114 mm |
| Power (gross): | 72 hp 53.7 kW |
| Rated RPM: | 2300 |
| Operating RPM: | 700-2300 |
| Starter volts: | 12 |
| Oil capacity: | 7.8 qts 7.4 L |
| Coolant capacity: | 14.4 qts 13.6 L |
Dimensions | |
| 2WD Wheelbase: | 89 inches 226 cm |
| 4WD Wheelbase: | 87 inches 220 cm |
| Length: | 143 inches 363 cm |
| 2WD Width: | 70 inches 177 cm |
| 4WD Width: | 74 inches 187 cm |
| 2WD Weight: | 6230 lbs 2825 kg |
| 4WD Weight: | 6690 lbs 3034 kg |
| 2WD Clearance (front axle): | 21.4 inches 54 cm |
| 4WD Clearance (front axle): | 14.2 inches 36 cm |
| 2WD Clearance (drawbar): | 16.5 inches 41 cm |
| 4WD Clearance (drawbar): | 15.9 inches 40 cm |
| 2WD Front tread: | 52 to 72 inches 132 to 182 cm |
| Rear tread: | 56 to 80 inches 142 to 203 cm |
