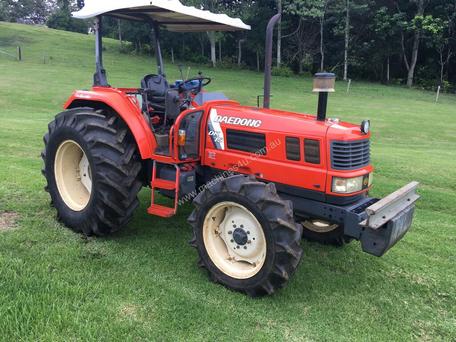

Daedong LK4504

Contents:

Production

Manufacturer:Daedong
Factory:Korea

Daedong LK4504 Power

Engine:46 hp 34.3 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Transmission:8-speed

Hydraulics

Valves:1
Total flow:11.8 gpm 44.7 lpm

Tractor hitch

Rear Type:I
Rear lift:2,520 lbs 1143 kg

Power Take-off (PTO)

Rear PTO:transmission
Rear RPM:578/725/1000/1194

Engine Detail

Daedong 4A220A
diesel
4-cylinder
liquid-cooled
Displacement:134.1 ci 2.2 L
Bore/Stroke:3.425x3.638 inches 87 x 92 mm
Power:46 hp 34.3 kW
Air cleaner:dual dry element
Compression:22:1
Rated RPM:2800

Transmission

Gears:8 forward and reverse

Dimensions

Length:130.3 inches 330 cm
Width:58.3 inches 148 cm
Height:88.98 inches 226 cm
Weight:3,594 lbs 1630 kg
Ground clearance:14.6 inches 37 cm
