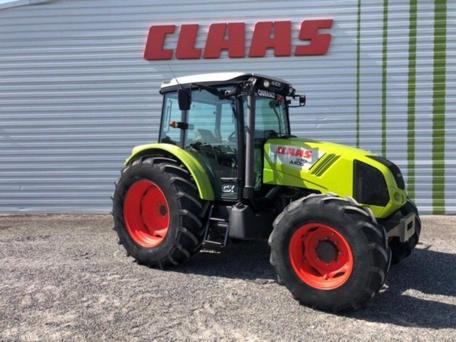

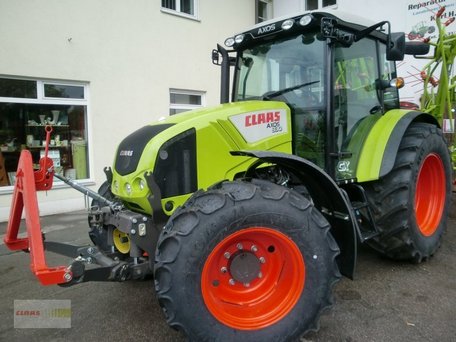

Claas Axos 330 C
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Claas |
| Type: | Utility tractor |
| Factory: | Le Mans, France |
Variants | |
| base model | |
| deluxre | |
| premium |
Claas Axos 330 C Power | |
| Engine: | 92 hp 68.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Cab: | Cab standard with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional. |
| Transmissions: | 10-speed synchronized reverse |
| 20-speed synchronized reverse | |
Hydraulics | |
| Valves: | up to 3 |
| Total flow: | 15.9 gpm 60.2 lpm |
Tractor hitch | |
| Rear Type: | II |
| III/II (optional) | |
| Rear lift (at 24"/610mm): | 6,393 lbs 2899 kg |
| Front Hitch: | optional |
| Front lift: | 6,173 lbs 2800 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 |
| 540/540E (optional) | |
| Front PTO: | optional |
| Front RPM: | 1000 |
Engine Detail | |
| Perkins 1104D-44TA | |
| turbocharged intercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 268.5 ci 4.4 L |
| Bore/Stroke: | 4.134x5.00 inches 105 x 127 mm |
| Emissions: | Tier 3 |
| Power: | 92 hp 68.6 kW |
| Rated RPM: | 2200 |
| Torque: | 289.9 lb-ft 393.1 Nm |
| Torque RPM: | 1500 |
| Oil change: | 500 h |
Dimensions | |
| Wheelbase: | 98 inches 248 cm |
| Length: | 164.6 inches 418 cm |
| Ground clearance: | 17.4 inches 44 cm (front axle) |
| 18.3 inches 46 cm (rear axle) | |
