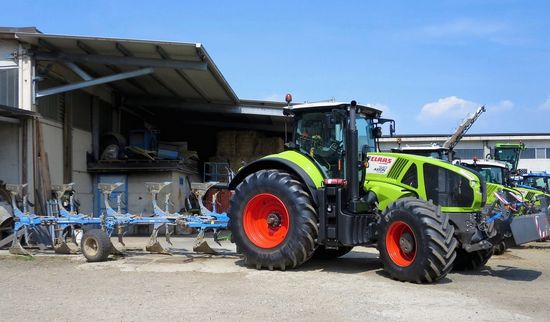

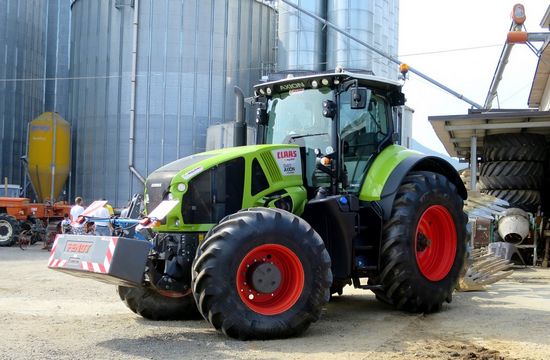

Claas Axion 940

Production: 2011 - 2022

Production
Manufacturer:	Claas
Type:	Row-Crop tractor

Claas Axion 940 Power
Engine (gross):	378.2 hp 282.0 kW
Engine (max):	374.1 hp 279.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	continuously variable transmission

Hydraulics
Type:	load sensing
Pump flow:	39.6 gpm 149.9 lpm
58.1 gpm 219.9 lpm *Optional

Tractor hitch
Rear Type:	III/IV
Rear lift (at ends):	16954 lbs 7690 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000
540E/1000*Optional
1000E/1000*Optional
Front RPM:	1000

Engine Detail
FPT
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	531.5 ci 8.7 L
Bore/Stroke:	4.61x5.31 inches 117 x 135 mm
Emissions:	Tier IV
Rated Power (EC 97/98):	378.2 hp 282.0 kW
Rated Power (ECE R120):	370.1 hp 276.0 kW
Maximum Power (ECE R120):	374.1 hp 279.0 kW
Rated RPM:	2150
Torque:	1143.2 lb-ft 1550.2 Nm
Torque RPM:	1600
Oil change:	600 h

Transmission
Transmission:	CMATIC
Type:	continuously variable transmission
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	124 inches 314 cm
Length:	220.1 inches 559 cm
Height (cab):	135.8 inches 344 cm
Weight:	28792 lbs 13060 kg
Max weight:	39683 lbs 18000 kg
Clearance (front axle):	25.5 inches 64 cm
Clearance (rear axle):	24.1 inches 61 cm
