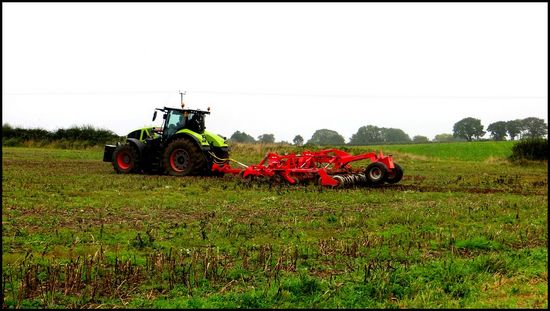

Claas Axion 860

Production: 2018

Production
Manufacturer:	Claas
Type:	Row-Crop tractor

Claas Axion 860 Power
Engine:	250 hp 186.4 kW
PTO (claimed):	244 hp 182.0 kW
Drawbar (tested):	195.59 hp 145.9 kW
PTO (tested):	256.42 hp 191.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	continuously variable transmission

Hydraulics
Rear valves:	4 or 5
Front valves:	2*Optional
Pump flow:	40 gpm 151.4 lpm

Tractor hitch
Rear Type:	III

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
FPT
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	410.6 ci 6.7 L
Bore/Stroke:	4.09x5.20 inches 104 x 132 mm
Emissions:	Tier IV
Emission control:	selective catalytic reduction
Power:	250 hp 186.4 kW
Starter:	electric
Starter volts:	12
Oil change:	600 h

Transmission
Transmission:	CMATIC
Type:	continuously variable transmission
Gears:	infinite forward and reverse

Dimensions
Operating weight:	23265 lbs 10553 kg
