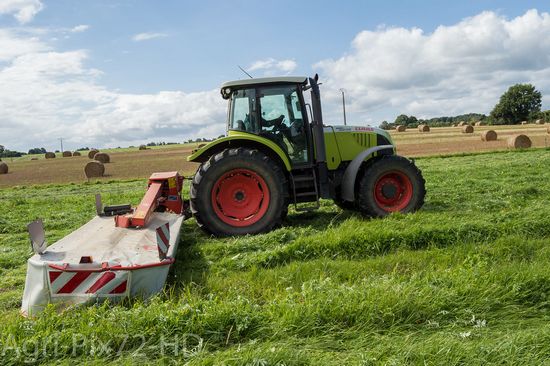

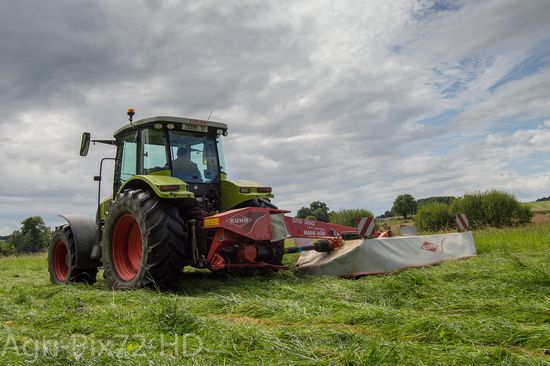

Claas Ares 697

Production: 2005 - 2007

Production
Manufacturer:	Claas
Type:	Row-Crop tractor

Claas Ares 697 Power
Engine (net):	138.1 hp 103.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Claas ATZ cab with air-conditioning and suspension.
Transmission:	24-speed power shuttle

Hydraulics
Type:	open center
PFC*Optional
Pressure:	2900 psi 200.0 bar
Pump flow:	15.85 gpm 60.0 lpm
26.4 gpm 99.9 lpm *Optional
29.1 gpm 110.1 lpm (PFC)

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	wet disc
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
John Deere DPS 6068
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	414.2 ci 6.8 L
Bore/Stroke:	4.19x5.00 inches 106 x 127 mm
Rated Power (ECE R24):	138.1 hp 103.0 kW
Maximum Power (ECE R24):	147 hp 109.6 kW
Rated RPM:	2200
Torque:	433.7 lb-ft 588.1 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Transmission
Type:	power shuttle
Gears:	24 forward and reverse

Dimensions
Wheelbase:	111 inches 281 cm
Length:	203.2 inches 516 cm
Height:	118.5 inches 300 cm
Weight:	12412 lbs 5630 kg
Max weight:	20392 lbs 9249 kg
