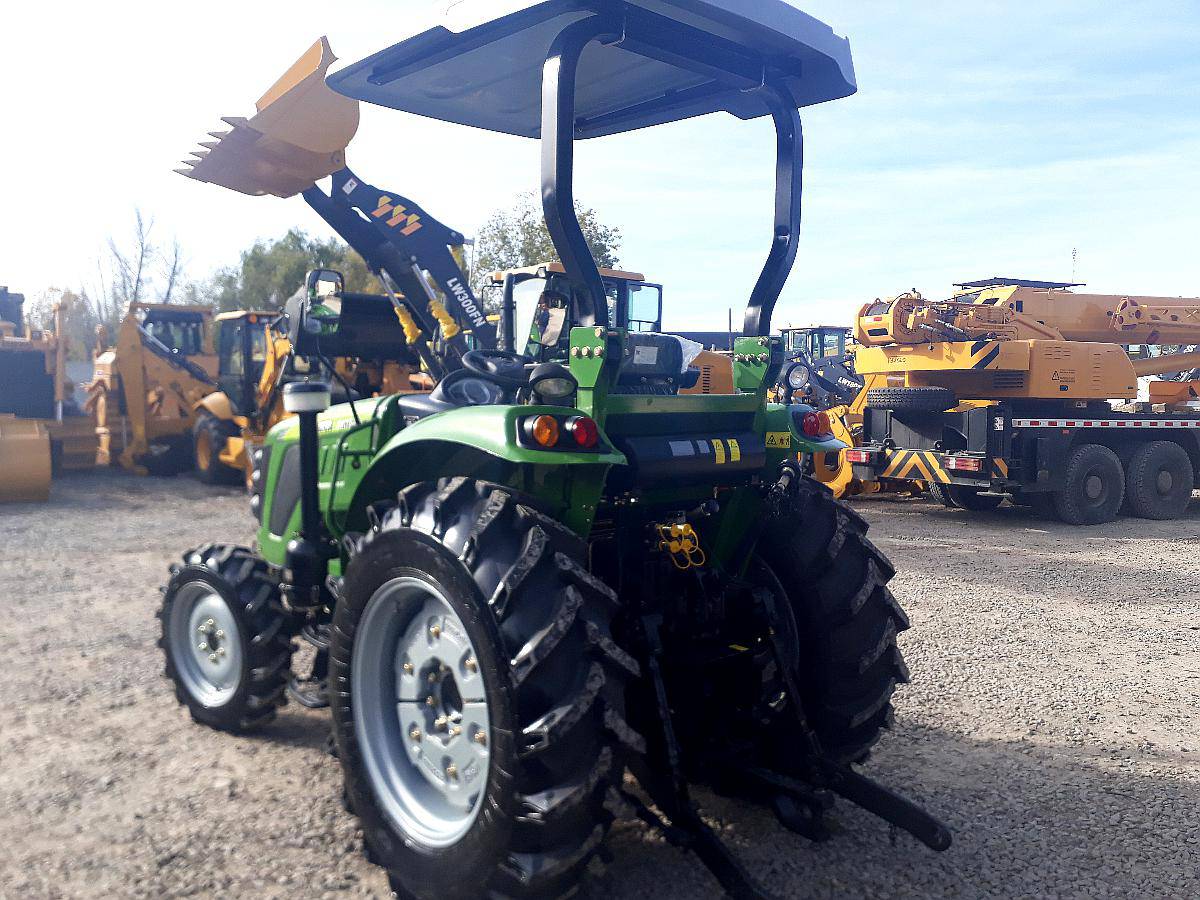

Chery RS1054F

Production: 2012

Production
Manufacturer:	Chery
Type:	Row-Crop tractor
Factory:	China

Variants

4-cyl turbo

6-cyl natural

Chery RS1054F Power
Engine (gross):	105 hp 78.3 kW
PTO (claimed):	88.0 hp 65.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydraulic power
Brakes:	pneumatic brake optional
Cab:	Cab standard. Available heat and air-conditioning.
Transmission:	16-speed shuttle

Tractor hitch
Control:	position and float control
Rear lift (at 24"/610mm):	4946 lbs 2243 kg
Drawbar:	fixed drawbar
swinging drawbar optional

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540/1000
760/1000 (optional)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
YTO LR6A3-23
diesel
6-cylinder
liquid-cooled
Power (gross):	105 hp 78.3 kW
Fuel system:	direct injection
Air cleaner:	oil bath
Rated RPM:	2300
Torque RPM:	1600
Starter:	electric
Starter volts:	12

Transmission
Type:	shuttle
Gears:	16 forward and 8 reverse
Clutch:	304.8mm dry disc

Dimensions
Wheelbase:	101.7 inches 258 cm
Length:	198.8 inches 504 cm
Width:	89.2 inches 226 cm
Height (cab):	117.9 inches 299 cm
Weight:	11380 lbs 5161 kg
Ground clearance:	18.5 inches 46 cm
Front tread:	75.3 to 84.9 inches 191 to 215 cm
Rear tread:	71.5 to 85.8 inches 181 to 217 cm
