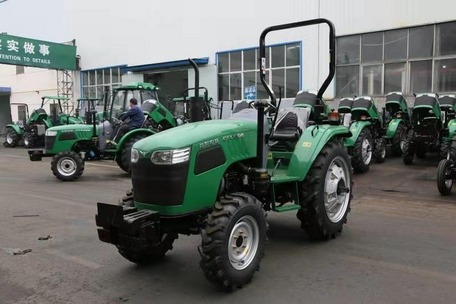

Chery RM654

Production: 2012

Production
Manufacturer:	Chery
Type:	Utility tractor
Factory:	China

Variants

2WD

4WD

Chery RM654 Power
Engine (gross):	65 hp 48.5 kW
PTO (claimed):	58.0 hp 43.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydraulic power
Brakes:	pneumatic brake optional
Cab:	Cab standard. Optional heater or air-conditioning. Available ROPS and canopy.
Transmissions:	16-speed gear
8-speed gear
10-speed shuttle

Tractor hitch
Control:	position and float control
optional draft control
Rear lift (at 24"/610mm):	3372 lbs 1529 kg
Drawbar:	fixed drawbar
swinging drawbar optional

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540/760
540/1000 (optional)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Quanchai 4JR3T65X
diesel
4-cylinder
liquid-cooled
Displacement:	268.3 ci 4.4 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power (gross):	65 hp 48.5 kW
Fuel system:	direct injection
Air cleaner:	oil bath
Rated RPM:	2200
Torque:	199.1 lb-ft 270.0 Nm
Torque RPM:	1600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	86.1 inches 218 cm
Length:	156.7 inches 398 cm
Width:	65 inches 165 cm
Height (exhaust):	103.3 inches 262 cm
Weight:	6526 lbs 2960 kg (ROPS)
7033 lbs 3190 kg (Cab)
Ground clearance:	13.2 inches 33 cm
Front tread:	57.1 inches 145 cm
Rear tread:	60.2 inches 152 cm
