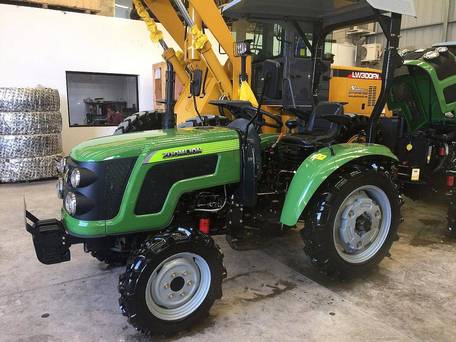

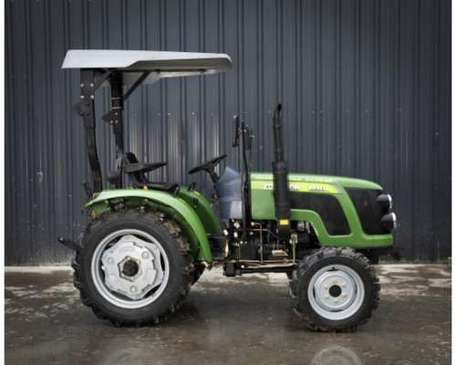

Chery RD304

Production: 2012

Production
Manufacturer:	Chery
Type:	Compact Utility tractor
Factory:	China

Variants

2WD

4WD

Chery RD304 Power
Engine (gross):	30 hp 22.4 kW
PTO (claimed):	26.7 hp 19.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydraulic power
Brakes:	pneumatic brake optional
Cab:	Open operator station. Optional two-post ROPS and canopy.
Transmissions:	8-speed gear
8-speed shuttle

Tractor hitch
Control:	position and float control
Rear lift (at 24"/610mm):	1115.0 lbs 505 kg
Drawbar:	fixed drawbar
swinging drawbar optional

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540/720
540/1000 (optional)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Jiang Dong TY3100IT
diesel
3-cylinder
liquid-cooled
Displacement:	168.2 ci 2.8 L
Bore/Stroke:	3.937x4.606 inches 100 x 117 mm
Power (gross):	30 hp 22.4 kW
Fuel system:	direct injection
Air cleaner:	oil bath
Rated RPM:	2350
Torque:	81.1 lb-ft 110.0 Nm
Torque RPM:	1650
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	70.1 inches 178 cm
Length:	130.4 inches 331 cm
Width:	60 inches 152 cm
Height:	100.6 inches 255 cm
Weight:	3164 lbs 1435 kg
Ground clearance:	11.4 inches 28 cm
Front tread:	47.8 inches 121 cm
Rear tread:	37.8 to 57.5 inches 96 to 146 cm
