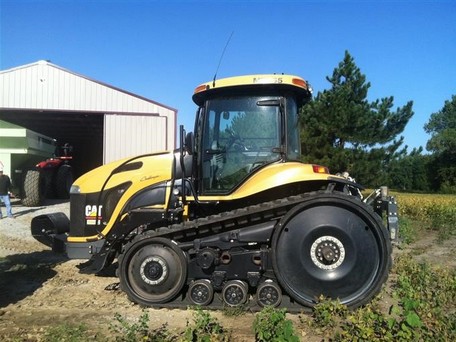

Challenger MT755
Contents:
Production | |
| Manufacturer: | Challenger (a part of AGCO) |
| Type: | Agricultural Crawler tractor |
| Factory: | Jackson, Minnesota, USA |
Challenger MT755 Power | |
| Engine (gross): | 290 hp 216.3 kW |
| Drawbar (claimed): | 226 hp 168.5 kW |
| PTO (claimed): | 235 hp 175.2 kW |
| Drawbar (tested): | 202.94 hp 151.3 kW |
| PTO (tested): | 270.23 hp 201.5 kW |
Mechanical | |
| Chassis: | crawler |
| Steering: | electro-hydraulic |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 16-speed full power shift |
| 30-speed creeper | |
Hydraulics | |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 4 to 6 |
| Total flow: | 43.5 gpm 164.6 lpm |
Tractor hitch | |
| Rear Type: | III |
| Rear lift: | 16000 lbs 7257 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
MT755 Serial Numbers | |
| Location: | On main tractor frame, front left side. |
| 2002: | ALM20000 |
| 2003: | ALM30000 |
| 2004: | ALM40000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 160 |
| Battery volts: | 12 |
Engine Detail | |
| Caterpillar | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled vertical | |
| Displacement: | 537 ci 8.8 L |
| Bore/Stroke: | 4.409x5.866 inches 112 x 149 mm |
| Power (gross): | 290 hp 216.3 kW |
| Air cleaner: | dual paper elements |
| Compression: | 16.0:1 |
| Rated RPM: | 2100 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 96 inches 243 cm |
| Weight: | 29,540 lbs 13399 kg |
| Rear axle: | Bar: 88 inch length 2235 mm |
| Rear axle: | Bar: 120 inch length 3048 mm |
| Rear axle: | Bar: 160 inch length 4064 mm |
| Gauge: | 60 to 88 inches 152 to 223 cm |
| Gauge: | 80 to 120 inches 203 to 304 cm |
| Gauge: | 120 to 160 inches 304 to 406 cm |
