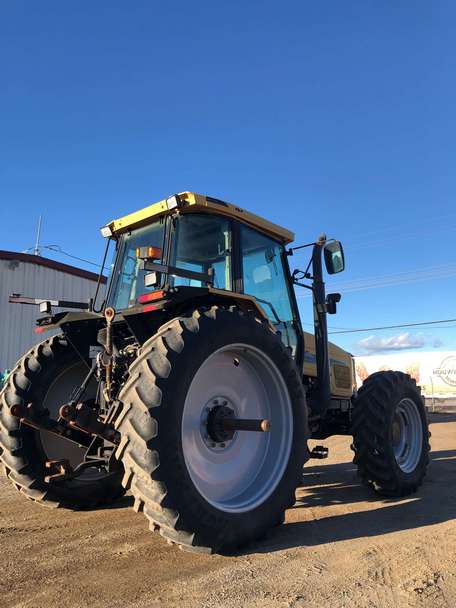

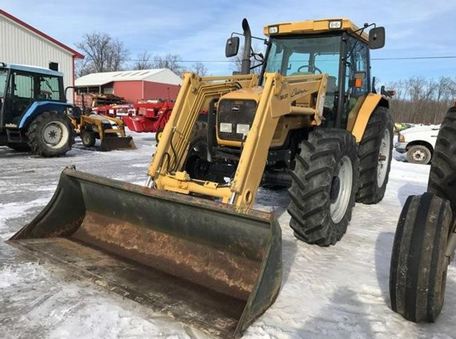

Challenger MT545E
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Challenger (a part of AGCO) |
| Type: | Row-Crop tractor |
| Factory: | Jackson, Minnesota, USA |
Challenger MT545E Power | |
| Engine (gross): | 165 hp 123.0 kW |
| Engine (max): | 200 hp 149.1 kW |
| PTO (claimed): | 135 hp 100.7 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | electro-hydraulic front and rear |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. Auto-Guide 3000 |
| Transmissions: | 24-speed six-speed power shift |
| continuously-variable transmission (CVT) | |
Capacity | |
| Fuel: | 80 gal 302.8 L |
| Exhaust fluid (DEF): | 8 gal 30.3 L |
| Hydraulic system: | 15.9 gal 60.2 L (AP6) |
| 26.4 gal 99.9 L (CVT) | |
Hydraulics | |
| Type: | closed-center load sensing |
| Capacity: | 15.9 gal 60.2 L (AP6) |
| 26.4 gal 99.9 L (CVT) | |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 3 or 4 |
| SCV flow: | 26.4 gpm 99.9 lpm |
| Total flow: | 29 gpm 109.8 lpm |
| 50 gpm 189.3 lpm *Optional with CVT | |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at ends): | 8900 lbs 4037 kg |
| 15500 lbs 7030 kg *Lift capacity with CVT transmission. | |
| Front Hitch: | II |
| Front lift (at ends): | 6200 lbs 2812 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| 540/540E/1000/1000E*Optional | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
AGCO Power | |
| turbocharged intercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 402 ci 6.6 L |
| Bore/Stroke: | 4.252x4.724 inches 108 x 120 mm |
| Emissions: | Tier IV |
| Emission control: | selective catalytic reduction (SCR) |
| Rated Power (EC 97/98): | 165 hp 123.0 kW |
| Maximum Power (EC 97/68): | 200 hp 149.1 kW |
| Air cleaner: | dry element |
| Starter: | electric |
| Starter volts: | 12 |
