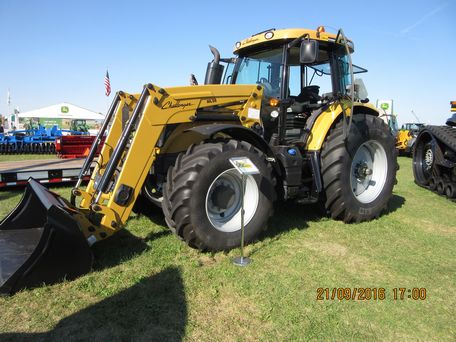

Challenger MT485D
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Challenger (a part of AGCO) |
| Type: | Utility tractor |
Challenger MT485D Power | |
| Engine (gross): | 135 hp 100.7 kW |
| PTO (claimed): | 110 hp 82.0 kW (AutoPower IV) |
| 110 hp 82.0 kW (Techstar CVT) | |
| 115 hp 85.8 kW (AutoPower IV) | |
| Drawbar (tested): | 99.0 hp 73.8 kW |
| PTO (tested): | 136.9 hp 102.1 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 16-speed four speed power shift |
| 24-speed six speed power shift | |
| continuously variable transmission (CVT) | |
Hydraulics | |
| Type: | closed center load sensing (CCLS) |
| open center optional | |
| Valves: | 2 to 4 |
| SCV flow: | 15 gpm 56.8 lpm (open center) |
| (26 gpm 0.0 lpm (open twin flow) | |
| 29 gpm 109.8 lpm (CCLS) | |
Tractor hitch | |
| Rear Type: | III/II |
| Control: | electronic lower link draft sensing |
| Rear lift (at 24"/610mm): | 11400 lbs 5171 kg |
| Drawbar: | Cat. 2 |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
| 540/540E/1000 | |
| 540/540E/1000/1000E | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 175 |
| 240 (2x 120) | |
| 350 (2x 175) | |
| Batteries: | 2 |
| Battery CCA: | 600 |
| Battery volts: | 12 |
Engine Detail | |
| AGCO Power 49AWI | |
| turbocharged air-to-air intercooled diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled | |
| Displacement: | 299 ci 4.9 L |
| Bore/Stroke: | 4.251x5.276 inches 108 x 134 mm |
| Emissions: | Interim Tier IV |
| Emission control: | selective catalytic reduction (SCR) |
| Power (gross): | 135 hp 100.7 kW (AutoPower IV) |
| 140 hp 104.4 kW | |
| Fuel system: | electronic high pressure common rail |
| Air cleaner: | dual dry element |
| Pre-heating: | thermostart |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 105 inches 266 cm |
| Shiping weight: | 12500 lbs 5670 kg |
| Rear axle: | Flange |
| Rear axle: | Bar: 3.23 by 80 inches 82 by 2032 mm |
| Rear axle: | Bar: 3.23 by 105 inches 82 by 2667 mm |
| Rear axle: | Bar: 3.74 by 90 inches 94 by 2286 mm |
| Rear axle: | Bar: 3.74 by 113 inches 94 by 2870 mm |
