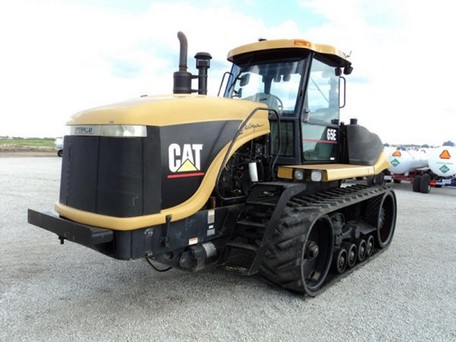

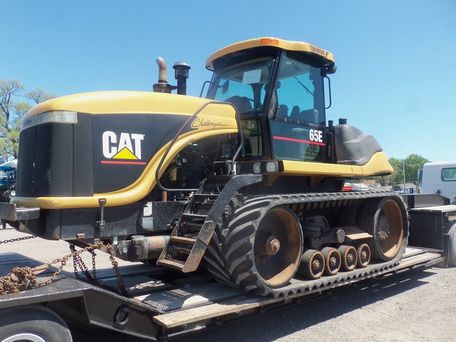

Challenger 65E

Production: 1998 - 2001

Production
Manufacturer:	Challenger (a part of Caterpillar)
Type:	Agricultural Crawler tractor
Original price:	$187,000

Challenger 65E Power
Engine:	310 hp 231.2 kW
Drawbar (tested):	248.00 hp 184.9 kW
PTO (tested):	308.98 hp 230.4 kW

Mechanical
Chassis:	crawler
Steering:	hydrostatic differential steering
Brakes:	hydraulic caliper disc
Cab:	Cab standard.
Transmission:	10-speed full power shift

Hydraulics
Type:	closed
Valves:	4
Total flow:	40 gpm 151.4 lpm

Tractor hitch
Rear Type:	III,IV
Rear lift:	14,583 lbs 6614 kg

Power Take-off (PTO)
Rear RPM:	1000

Engine Detail
Caterpillar
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	629 ci 10.3 L
Bore/Stroke:	4.92x5.51 inches 125 x 140 mm
Power:	310 hp 231.2 kW
Air cleaner:	dual paper elements
Compression:	16:1
Rated RPM:	2100
Starter volts:	12
Coolant capacity:	60 qts 56.8 L

Transmission
Type:	full power shift
Gears:	10 forward and 2 reverse

Dimensions
Wheelbase:	107 inches 271 cm
Operating weight:	34,195 lbs 15510 kg
