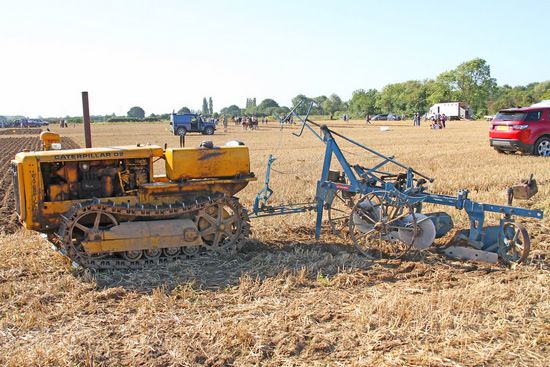

Caterpillar D2

Production: 1938 - 1957
Type: Agricultural Crawler Tractors

Contents:

Production

Manufacturer:Caterpillar
Type:Agricultural Crawler tractor
Factory:Peoria, Illinois, USA

Caterpillar D2 Power

Drawbar (tested):36.62 hp 27.3 kW
PTO (tested):32.9 hp 24.5 kW
Belt (tested):41.86 hp 31.2 kW

Mechanical

Chassis:crawler
Steering:mechanical clutches
Cab:Open operator station.
Transmission:5-speed gear

Engine Detail

Caterpillar
diesel
4-cylinder
liquid-cooled
Displacement:221 ci 3.6 L
Bore/Stroke:3.75x5.00 inches 95 x 127 mm
Rated RPM:1525
Torque:125 lb-ft 169.5 Nm
Torque RPM:1050

Transmission

Type:gear
Gears:5 forward and 1 reverse
Clutch:dry disc

Dimensions

Length:108 inches 274 cm
Height:57.5 inches 146 cm
Weight:7420 lbs 3365 kg (1939)
8536 lbs 3871 kg (1955)
Gauge:40 inches 101 cm
Gauge:50 inches 127 cm
