Caterpillar AG6
Contents:
Production | |
| Manufacturer: | Caterpillar |
| Type: | Agricultural Crawler tractor |

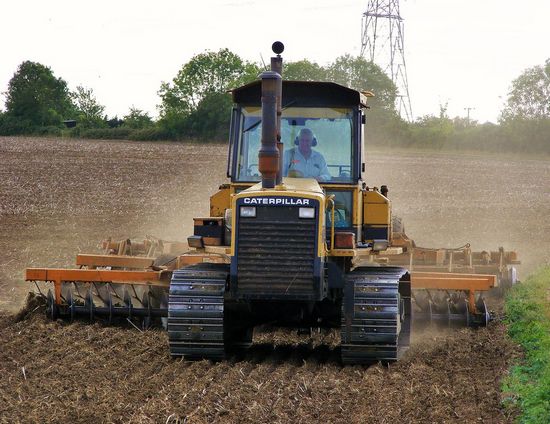

| The Caterpillar AG6 was an agricultural crawler based on the D6. This steel-tracked crawler was primarily sold in the western United States. It was moderately successful, but was overshadowed by the then-new rubber-tracked Challenger tractors. | |
Caterpillar AG6 Power | |
| Engine: | 240 hp 179.0 kW |
| Drawbar (claimed): | 188 hp 140.2 kW |
Mechanical | |
| Chassis: | crawler |
| Steering: | hydraulic wet disc clutches |
| Brakes: | wet hydraulic band |
| Cab: | Cab standard with air-conditioning. |
| Transmission: | 6-speed sliding gear |
Capacity | |
| Fuel: | 165 gal 624.5 L |
| Hydraulic system: | 17.5 gal 66.2 L |
Hydraulics | |
| Type: | closed center load sensing |
| Capacity: | 17.5 gal 66.2 L |
| Pressure: | 2350 psi 162.0 bar |
| Valves: | 5 |
| Pump flow: | 26.4 gpm 99.9 lpm |
Electrical | |
| Charging system: | alternator |
| Charging amps: | 50 |
Engine Detail | |
| Caterpillar 3306 | |
| turbocharged aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 638 ci 10.5 L |
| Bore/Stroke: | 4.75x6.00 inches 121 x 152 mm |
| Power: | 240 hp 179.0 kW |
| Fuel system: | direct injection |
| Air cleaner: | dry dual element |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 24 |
| Oil capacity: | 29 qts 27.4 L |
| Coolant capacity: | 48 qts 45.4 L |
Transmission | |
| Type: | sliding gear |
| Gears: | 6 forward and reverse |
| Clutch: | wet disc |
Dimensions | |
| Length: | 202 inches 513 cm |
| Width: | 98 inches 248 cm |
| Weight: | 32600 lbs 14787 kg |
| Clearance (drawbar): | 13 inches 33 cm |
| Gauge: | 74 inches 187 cm |
