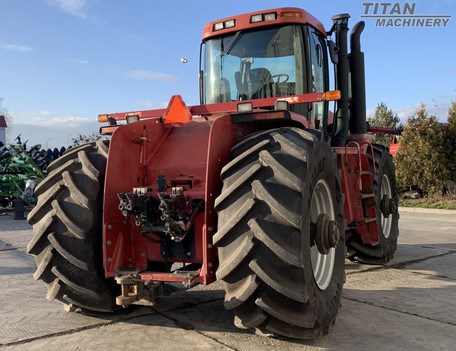

Case IH STX500

Production: 2004 - 2006

Contents:

Production

Manufacturer:Case IH
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA

Case IH STX500 Power

Engine:500 hp 372.9 kW
PTO (claimed):440 hp 328.1 kW

Mechanical

Chassis:4x4 articulated 4WD
Cab:Surveyor Cab standard.
Transmission:16-speed

Hydraulics

Type:pressure flow compensated (PFC)
Pump flow:42 gpm 159.0 lpm
57 gpm 215.7 lpm (optional)

Tractor hitch

Rear Type:IVN/III
Rear lift (at 24"/610mm):19500 lbs 8845 kg

Power Take-off (PTO)

Rear PTO:independent (optional)
Rear RPM:1000

Electrical

Ground:negative
Battery volts:12

Engine Detail

Cummins
turbo diesel
6-cylinder
liquid-cooled
Displacement:915 ci 15.0 L
Bore/Stroke:5.40x6.70 inches 137 x 170 mm
Power:500 hp 372.9 kW
Starter volts:12

Transmission

Transmission:powershift
Gears:16 forward and 2 reverse

Dimensions

Wheelbase:154 inches 391 cm
Weight:54000 lbs 24494 kg
