Case IH STX480
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Fargo, North Dakota, USA |
Variants | |
| wheeled tractor | |

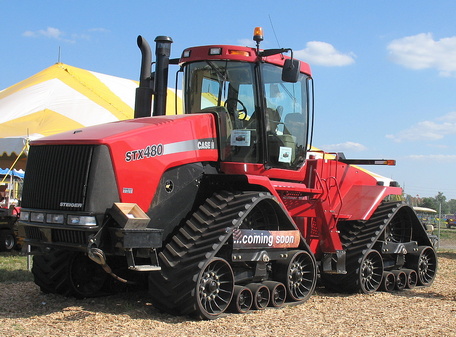

| crawler |
Case IH STX480 Power | |
| Engine: | 480 hp 357.9 kW |
| PTO (claimed): | 425 hp 316.9 kW |
| Drawbar (tested): | 391.15 hp 291.7 kW |
| PTO (tested): | 483.15 hp 360.3 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Final drives: | inboard 4-planetary |
| inboard compound planetary (STX480 HD) | |
| Steering: | hydrostatic power |
| Brakes: | integrated hydraulic wet disc |
| Cab: | Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating. |
| Transmission: | 16-speed full power shift |
Hydraulics | |
| Type: | pressure flow compensated |
| Valves: | 4 |
| Pump flow: | 40 gpm 151.4 lpm |
| 55 gpm 208.2 lpm (High capacity) | |
| 90 gpm 340.7 lpm (TwinFlow) | |
Tractor hitch | |
| Rear Type: | IVN |
| Rear lift (at 24"/610mm): | 19620 lbs 8899 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent*Optional |
| Rear RPM: | 1000 (1.75) |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Cummins QSX15 | |
| turbocharged aftercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 912 ci 14.9 L |
| Bore/Stroke: | 5.394x6.654 inches 137 x 169 mm |
| Power: | 480 hp 357.9 kW |
| Air cleaner: | dual paper elements |
| Compression: | 17.0:1 |
| Rated RPM: | 2000 |
| Starter volts: | 24 |
Transmission | |
| Type: | full power shift |
| Gears: | 16 forward and 2 reverse |
| Clutch: | electro-hydraulic wet disc |
Dimensions | |
| Wheelbase: | 154 inches 391 cm |
| Operating weight: | 44645 lbs 20250 kg |
| Max weight: | 54000 lbs 24494 kg |
| Rear axle: | Bar: 4.5 inch diameter 114 mm |
| Rear tread: | 60 to 176 inches 152 to 447 cm |
